INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.






Tracker, Volvo On Call

Note! This accessory requires software unique to the car.





- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.






Applies to cars with automatic gearbox
- Turn the ignition key to position II.

Applies to all models
- Move the gear selector lever to its rearmost position.
- Carefully prize away the gear lever panel at the rear edge using a weatherstrip tool.





- Press in the catches and remove the panel.

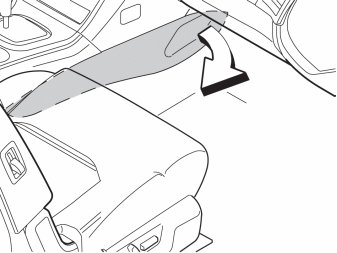

- Remove the left and right-hand side panels from the tunnel console. Pull them away at the front edge and continue backwards until all clips have released.





- Pull the handle, move the tunnel compartment backward and lift it away.





- Remove the cover.





- Remove the screws and unplug the connectors.
- Lift away the tunnel console.





- Remove the two screws holding the centre console to the climate control panel and the control module.
- Pull out the centre console at the lower edge and pull it away from the top edge.
- Unplug the connectors from the climate control panel and the control module.

Note! Do not damage the gear lever knob.





- Unplug the four connectors from the phone module (PHM). The larger connector has its catch underneath.





- Remove the screws.





- Place the cables and connectors beside the control module. Remove the control module by moving it forward until the guide pins release.





- Remove the four screws. Allow the console to remain.

Note! The console has different appearances depending on model year.

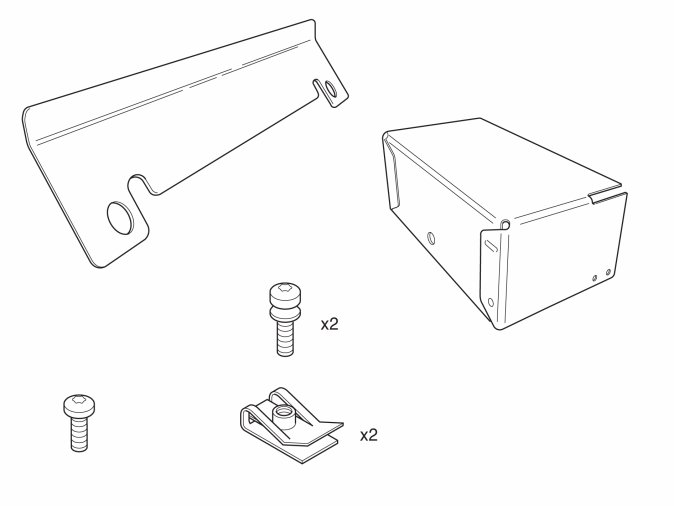

- Install the protective metal cover from the kit. It must be located on the outside of the existing console.





- Install the screw from the kit and tighten it three turns.
- Reinstall the four screws.
- Tighten all screws.






Reinstall:
- the control module with console

Note! The protruding section of the console for the control module must be located above the existing console.

- the screws
- the connectors.





- Remove the existing screw clips.
- Install the new larger screw clips. Centre them against the existing holes.

Reinstall:
- the tunnel console with screws and connectors
- the side panels.





- Reinstall the centre console by first hooking it in at the top edge and pressing it up, and then angling in the lower section.





- Install the protective metal cover with the shear screw.

Note! The bend on the upper section must point inward.

- Tighten the screws until the top is broken off.
- Reinstall the gear lever panel.





- Turn the ignition key to position II.
- Reconnect the battery negative lead.
- Download the software for the accessory's function following the service information in VIDA.
First download software P/N 30775679. Then download software P/N 30677028.

Caution! It is extremely important that the software is downloaded in the correct order.

Functionality check:
1. Start the phone module (PHM) by pressing the telephone's On button.
The phone module starts and requests a telephone code.
2. Enter telephone code, 1234.
The phone module approves the telephone code and requests a PIN code.
