Part 6

Applies to cars without a centrally mounted loudspeaker
- Refit the monitor unit and at the same time guide the earth braid up through the hole in front of the monitor.
- Remove the left-hand screw for the monitor.






Applies to cars without a centrally mounted loudspeaker

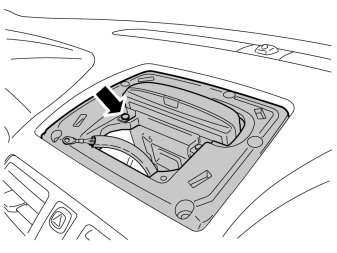

- Place the earth braid over the hole where the screw was positioned, fit the screw and tighten the earth braid.

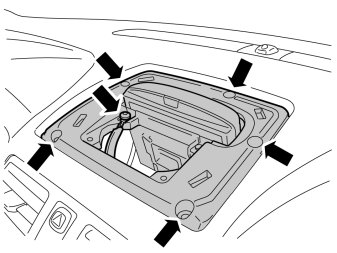

- Refit the five screws for the monitor unit.
- Refit the louvre.






Steps 108-113 apply to cars with a centrally mounted loudspeaker

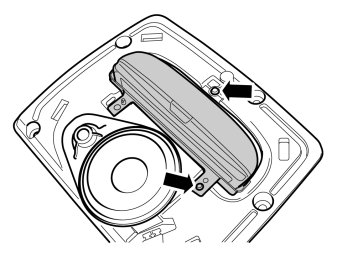

- Remove the three screws for the monitor.
- Remove the monitor by first angling it backwards at the lower edge and then guiding it out.

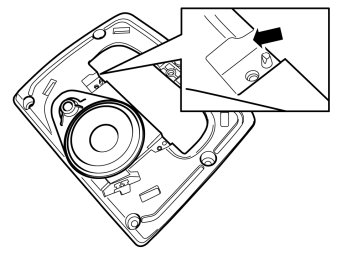

- Locate the end by the left-hand mounting point for the monitor on the loudspeaker frame.

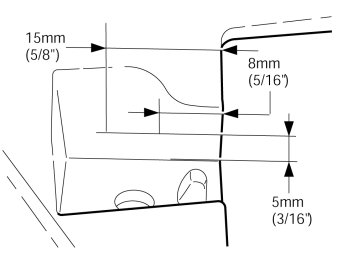

- Measure and mark out two points according to the image.





- Pre-drill in the centers of the markings using a - 2mm (5/64") diameter drill bit.
- Then drill out the holes. Use a - 8mm " (5/16") drill bit.

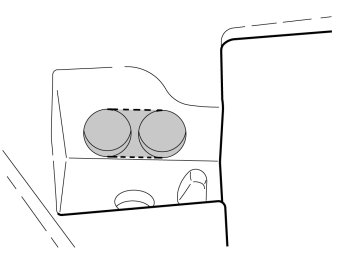

- Cut away the part between the drill holes as illustrated.

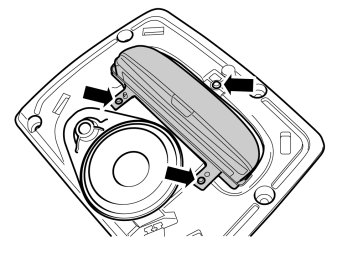

- Reinstall the monitor and tighten using two screws as illustrated.





- Take the loose end of the ground strip and thread it through the drilled holes from underneath.

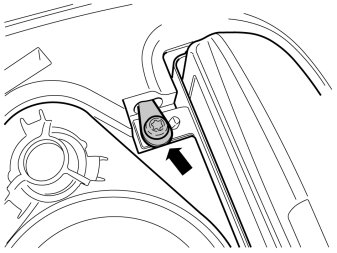

- Secure the cable terminal using the screw for the monitor and tighten.
- Reinstall the monitor unit with its five screws.
- Refit the louvre.

Finishing work






Install:
- the sill trim panels.
- panel over the joint between the door sills.
- seat belt.

Note! Check that the seat belt is secure by jerking it hard in an upwards direction.

- seat, tighten the screws to 50 Nm (36.8 lbf.ft.).
- seat links.
- side panels.
- Reconnect the battery negative lead






Warning! When the ignition is to be switched on for the first time after the battery has been disconnected, this must be done by standing outside the vehicle, stretching your arm in and avoiding the operating area for the airbags.

- Set the ignition switch to position II.





- Download software (application) for the accessory's function.






Perform a function test as follows
- Engage reverse gear
- Activate the screen for RTI
- Wait for the message "Update Environment" to appear on the screen
- Follow the on-screen instructions
- Switch off the ignition for at least 10 seconds. - Turn the ignition on
- Activate the screen for RTI
- Check that the support lines appear on the screen and that these react to steering wheel movements.





- Check the position of the camera using the calibration program. See VIDA under "Diagnostics/Vehicle communication/Advanced".

Note! If the camera lens cannot be correctly positioned, remove the lens and drill out the two holes in the tailgate for the screws. If necessary, file the rectangular holes so that the camera lens can be adjusted to the correct position.

- Refit the trunk lid's panels and lamp.
- Refit the floor hatches.
