Part 4

Parking assistance, camera, XC90

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.

Parking assistance, camera

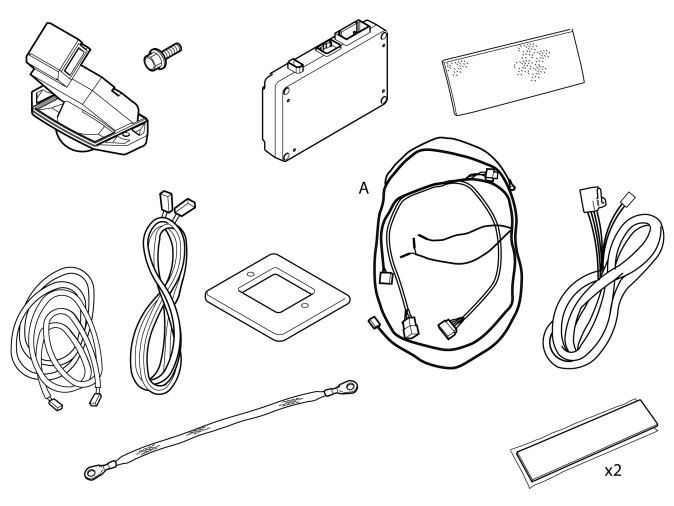

Note! For cars with an accessory electronic module (AEM), the existing cable harness between the accessory electronic module (AEM) and the rear electronic module (REM) must be replaced (steps 51-66). The new cable harness is marked (A) in the kit image.

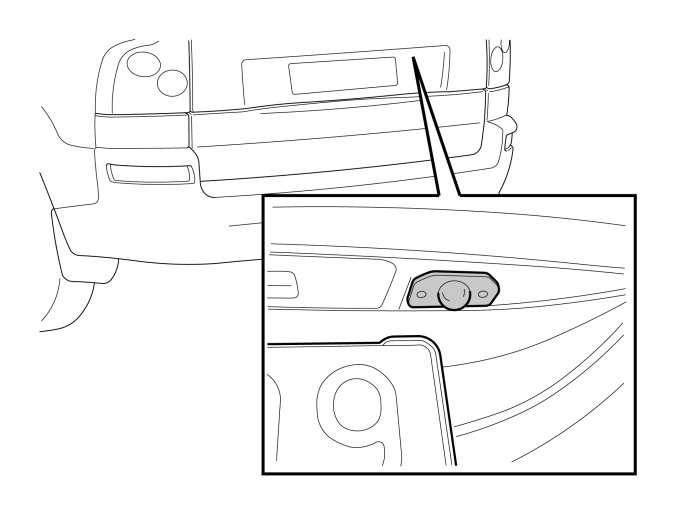

Installing the camera

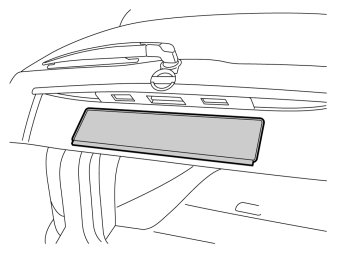

- Remove the number plate and holder.

- Apply tape to the boot lid to protect the finish.

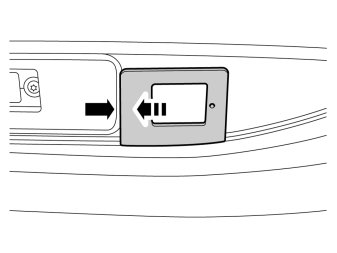

- Position the template as illustrated.

- Make a mark according to the template's inner rectangle.

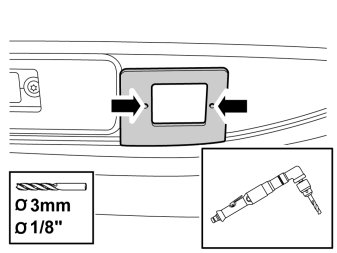

- Use a short drill bit and drill holes according to the template.

Note! Do not drill through the template.

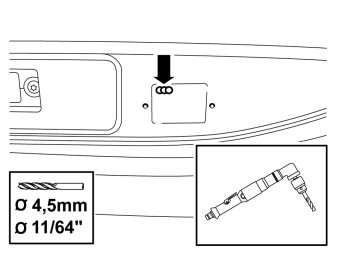

- Drill three overlapping holes as illustrated.

Note! Use a short drill bit.

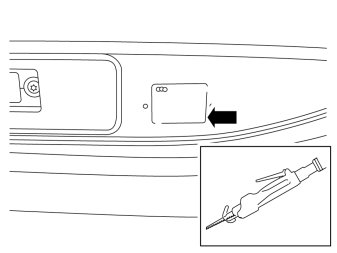

- Cut out along the inside of the marking. The marking should still be visible.
- Clean up the saw cuttings using a vacuum.

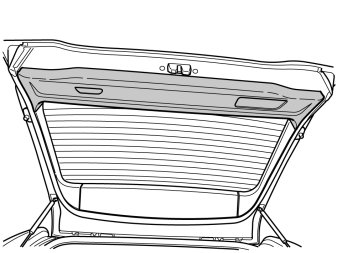

- Open the boot lid fully.

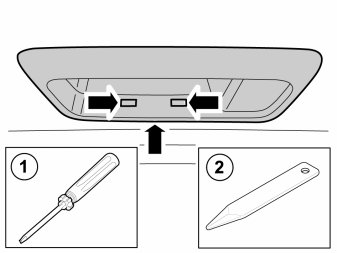

- Remove the border around the handle by pressing in the two catches with a screwdriver (1) and at the same time pry up the outer edge using a weatherstrip tool (2).

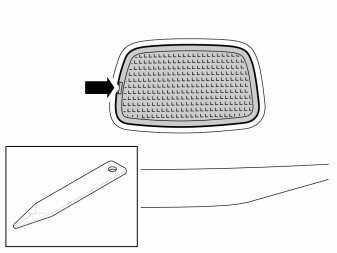

- Remove the lamp.
- Unplug the connector.

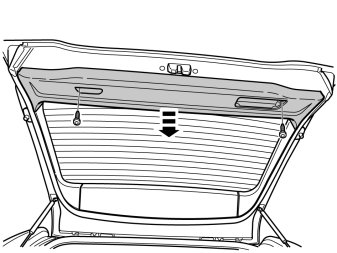

- Remove the screws.
- Pull the panel downwards until all the clips release.

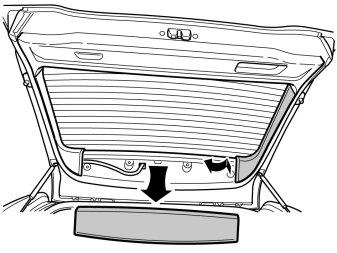

- Remove the centre panel and the right-hand side panel.

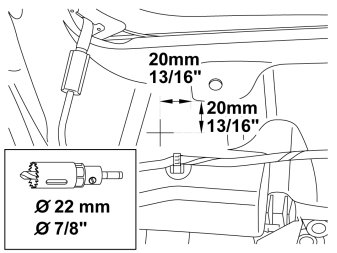

- Mark out and drill with the hole saw as illustrated.
- Vacuum.

Applies to cars without vibration damper

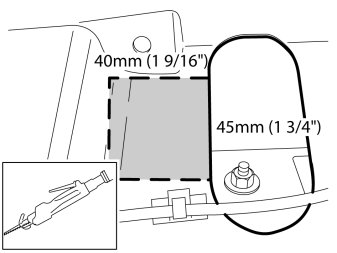

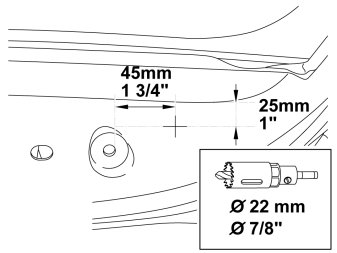

- Mark out and saw out the hole as illustrated.
- Vacuum.

Applies to cars with vibration damper installed

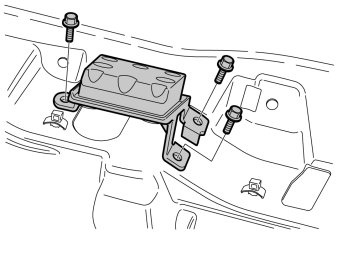

- Remove the vibration damper by removing the three screws.

- Remove the rear roof panel covers and the screws beneath them.
- Carefully pry off the panel at the rear edge. Use a plastic weatherstrip tool.
- Pull the rear edge of the panel downwards until the four clips on the top release.
- If the car is equipped with lighting in the panel, unplug the connector from the panel.
- Pull the panel backwards to release it.

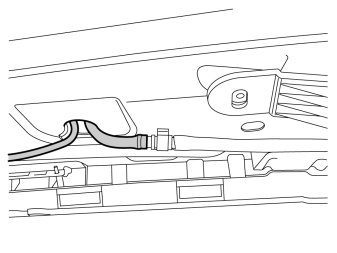

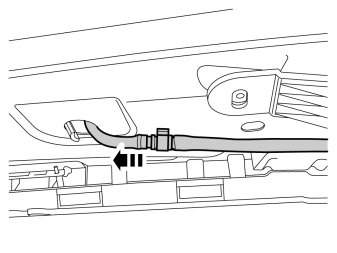

- Disconnect the washer hose.

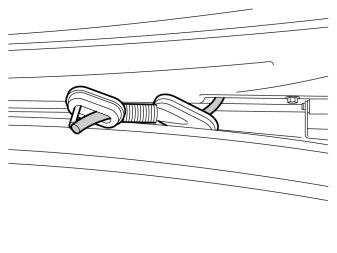

- Loosen the rubber pass-through and pull out the washer hose.

- Take the tail that is foam-covered about 100 mm on the cable to camera lens and thread through the hole.

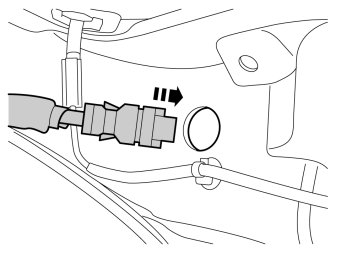

- Insert the cable through the rubber grommet. The end of the grommet that has a lip should sit in the body and the part without a lip should sit in the cargo compartment. The rubber grommet should sit on the part of the cable that is not foam-covered.

- Thread a wire or cable through the drilled hole down to the washer hose.

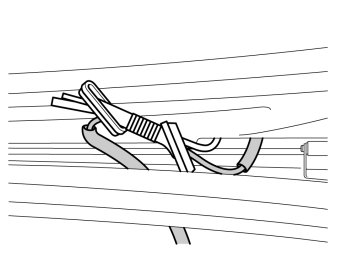

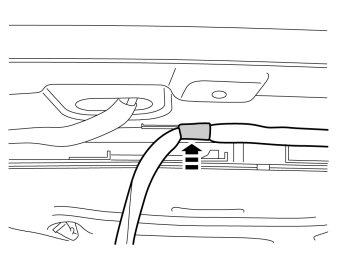

- Tape the cable to the camera on the wire or cable that has been threaded through the hole.

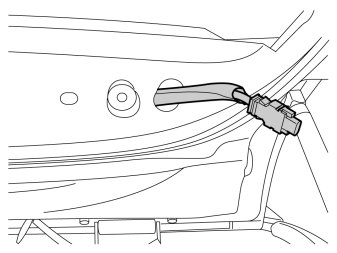

- Route the cable out through the hole.

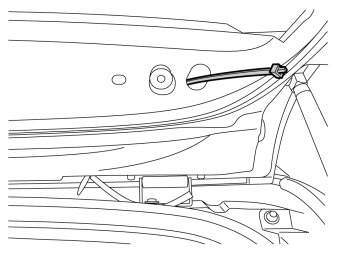

- Press the cable clip in the hole. If the hole is being used, secure it by the existing cable with a cable tie.

- Refit the rubber pass-through and adjust the length of the cable from the clip to the rubber pass-through.

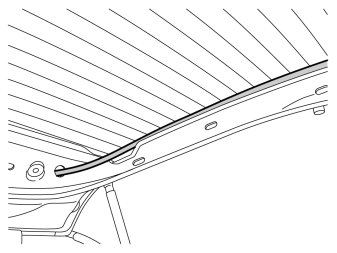

- Route the cable between the rear window and lid as illustrated.

- Thread the cable through the hole.

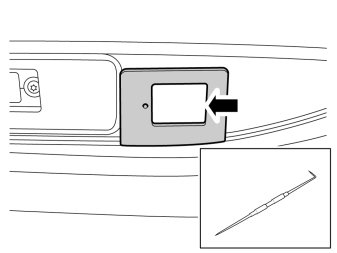

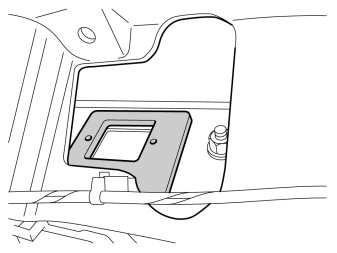

- Place the template over the hole for the camera lens (inside the lid).
