Troubleshooting

Troubleshooting ECM-P240200

Checking the status




- Ignition on
Read the diagnostic status and trouble status for the diagnostic trouble code by selecting the diagnostic trouble code in the list.
Check if the malfunction is permanent or intermittent by reading off the diagnostic trouble code's status when the diagnostic status is "Implemented".
If the trouble status is "Malfunction found", this indicates that the malfunction is permanent. If the trouble status is "No malfunction found", this indicates that the malfunction is intermittent and not active right now.

Note! Trouble status cannot go from "Malfunction found" to "No malfunction found" in the same operating cycle.





Continue - Checking component and cables

-------------------------------------------------

Checking component and cables

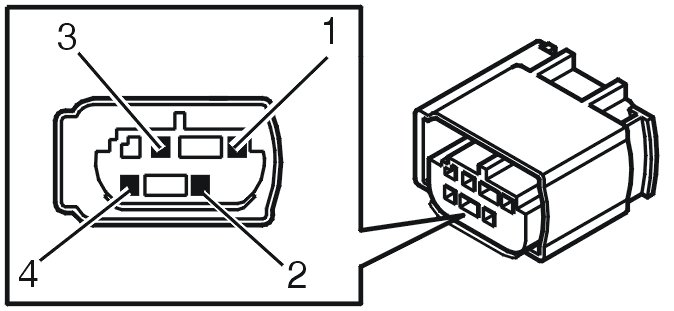

Check the leakage diagnostics unit's connector for contact resistance and oxidation.
Check the cable between engine control module (ECM) #B33 (#C33) and the leakage diagnostics unit #1 for short-circuit to voltage.
Remedy as necessary.

Other information
- Connecting the breakout box, B8444S Connecting The Breakout Box, Engine Control Module (ECM)
- Signal specification, engine control module (ECM), B8444S Signal Specification, Engine Control Module (ECM)
- Leak diagnostic pump, replacing, B8444S, B6324S5 Service and Repair
- Checking wiring and terminals Checking Wiring And Terminals









Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reconnect the connectors, components, etc.
- Ignition on
- Read the diagnostic status and fault status for the diagnostic trouble code by selecting the diagnostic trouble code in the list.
Check the fault status for the diagnostic trouble code when the scan is "Implemented". When the function is correct the fault status should be "No fault found" when the scan is implemented.





Is the function OK?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Troubleshooting information

VERIFIED - FAULT FOUND

-------------------------------------------------

Troubleshooting information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking component and cables

-------------------------------------------------
