Wiper Motor: Service and Repair

Rear wiper motor

Operation number: 36366-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the liftgate trim panel Refer to: Tailgate/trunk lid panel Service and Repair




Torque: Rear window wiper arm, 12 Nm

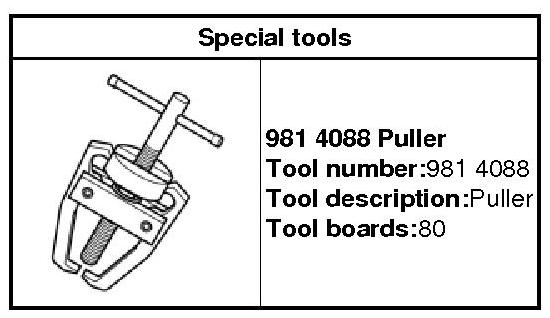

981 4088 Puller 981 4088 Puller

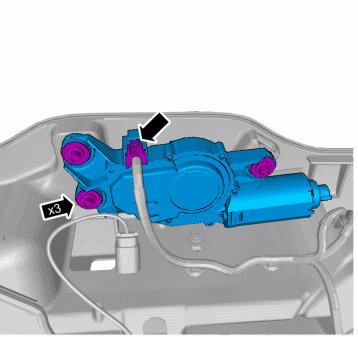

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
