Rear Door Window Regulator: Service and Repair

Lift mechanism, rear door






Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- Panel rear door Refer to: Panel rear door Removal and Replacement
- Outer handle, rear door Refer to: Outer handle, rear door Service and Repair

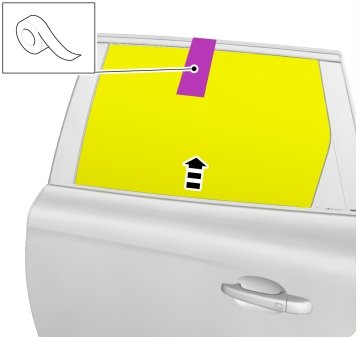

Use: Masking tape, 9511051




1. Torque: Door latch to door, 8 Nm

2. Torque: M5, 5 Nm





























Installation

To install, reverse the removal procedure.

Perform power window motor, initiation Refer to: Door Window Motor Initialization Programming and Relearning
