Front Door Window Regulator: Service and Repair

Lift mechanism, front door

Operation number: 83526-2

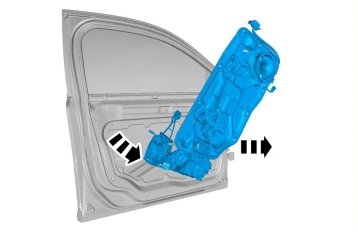

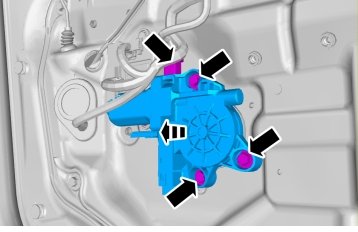

Removal

Note! Removal steps in this procedure may contain installation details.

Remove window side door front Refer to: Window, front door. Service and Repair

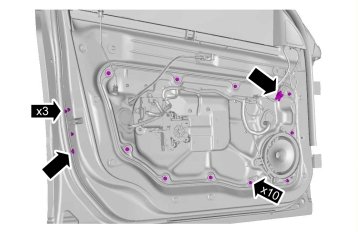

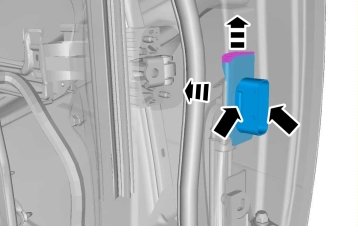

Remove handle external side door front Refer to: Handle outer door front Service and Repair

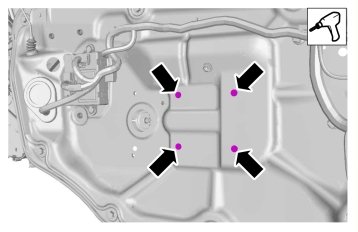

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform power window motor, initiation Refer to: Door Window Motor Initialization Programming and Relearning
