Rear Door Window Glass: Service and Repair

Window, rear door

Operation number: 84420-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

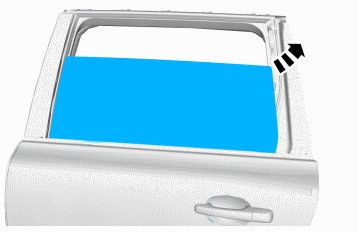

Removal

Note! Removal steps in this procedure may contain installation details.







Remove the panel. Refer to: Panel rear door Removal and Replacement

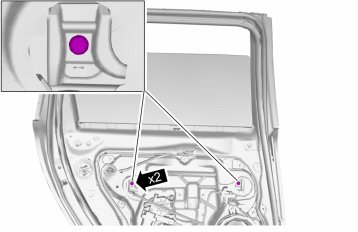

Note! Do not loosen the bolts more than two turns.

Torque: Window to power window mechanism (rear side door), 8 Nm






Installation

To install, reverse the removal procedure.
