Quarter Window Glass: Service and Repair

Fixed Side Window

Operation number: 84404-2

Removal

See information about bonded windows, general safety information Refer to: Bonded window, general safety information Service Precautions

See information about bonded windows, general information Refer to: Bonded window general, information Service and Repair

Remove the D-pillar trim panel Refer to: Panel, D-pillar Panel, D-Post, Replacing

Warning! Wear safety goggles.

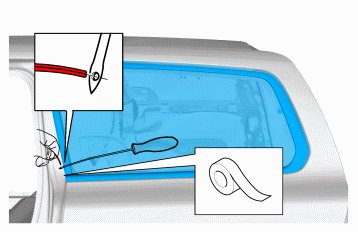

951 2925 Rollout 2000 951 2925 Rollout 2000

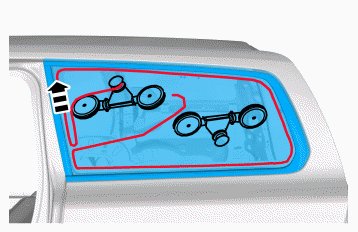

951 2335 Window lifter 2 pieces 951 2335 Window Lifter 2 Pieces

Installation

See information about bonded windows, general safety information Refer to: Bonded window, general safety information Service Precautions

See information about bonded windows, general information Refer to: Bonded window general, information Service and Repair

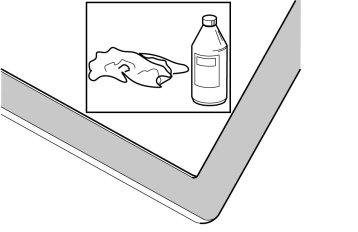

Use: H Cleaner, 1161436-9

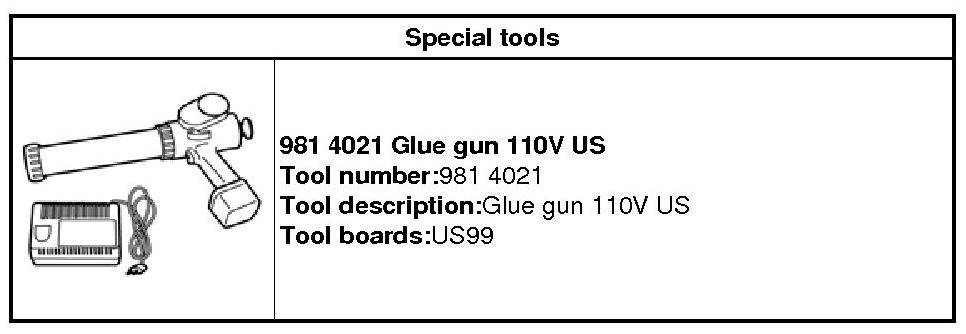

981 4022 Oven 220V SHUKO 981 4022 Oven 220V Shuko 981 4023 OFFSET SCREWDRIVER TORX T30 981 4023 Offset Screwdriver Torx T30 981 4024 OFFSET SCREWDRIVER TORX T40 981 4024 Offset Screwdriver Torx T40 981 4019 Glue gun 220V SHUKO 981 4019 Glue Gun 220V Shuko 981 4020 Glue gun 220V UK 981 4020 Glue Gun 220V UK 981 4021 Glue gun 110V US 981 4021 Glue Gun 110V US

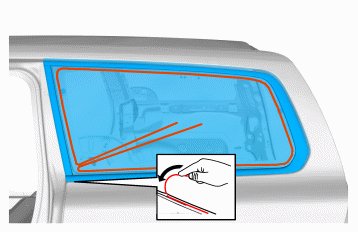

Use: Adhesive kit, 31298559

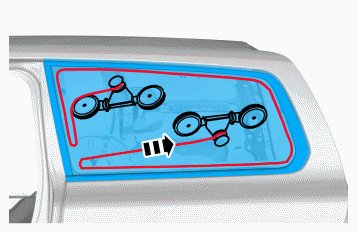

951 2335 Window lifter 2 pieces 951 2335 Window Lifter 2 Pieces

Warning! Wait for the specified time at the specified temperature before moving the car.

Install panel d-pillar Refer to: Panel, D-pillar Panel, D-Post, Replacing
