Transfer Case Connecting Sleeve Seals

Transfer Case Connecting Sleeve Seals






Removal

Remove bevel gear Refer to: Bevel gear Bevel Gear Bevel gear, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Bevel Gear





Warning! Be prepared to collect escaping fluid.

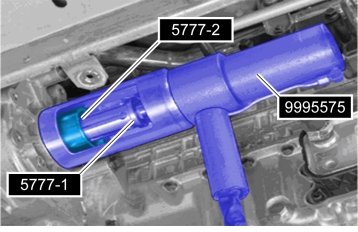

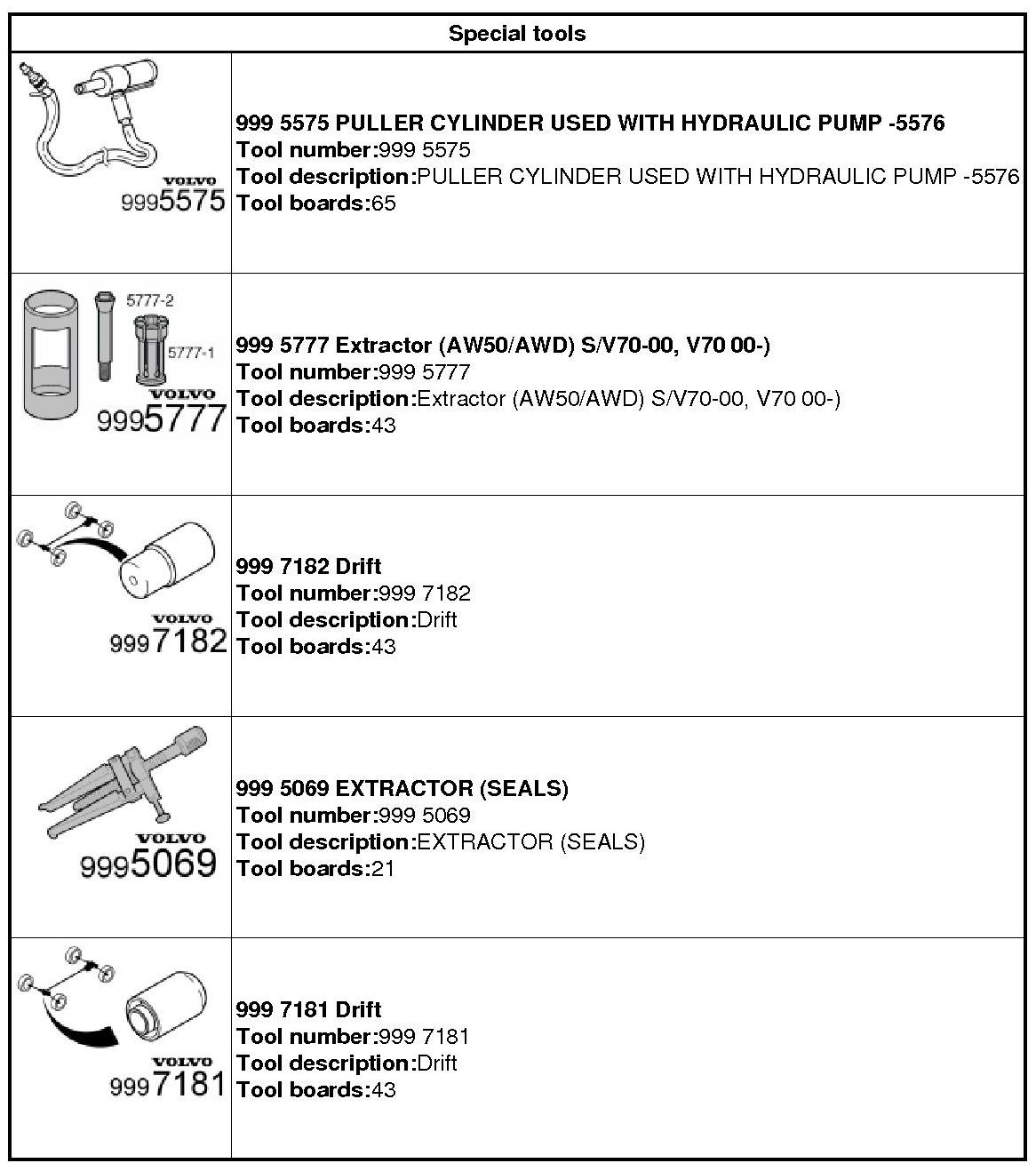

999 5575 PULLER CYLINDER USED WITH HYDRAULIC PUMP -5576 999 5575 Puller Cylinder Used With Hydraulic Pump -5576 999 5777 Extractor 999 5777 Extractor

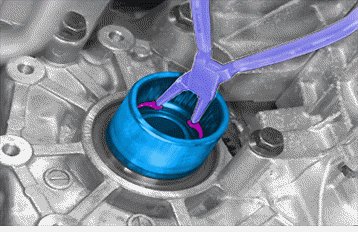

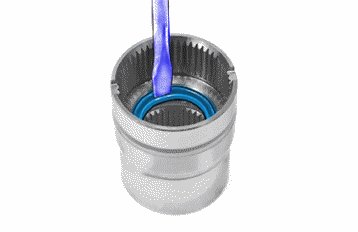

999 7182 Drift 999 7182 Drift 999 5069 EXTRACTOR 999 5069 Extractor













Warning! Wear protective gloves.

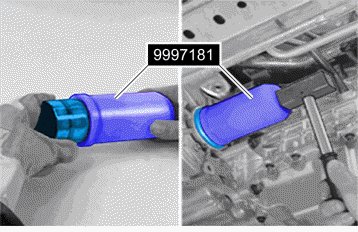

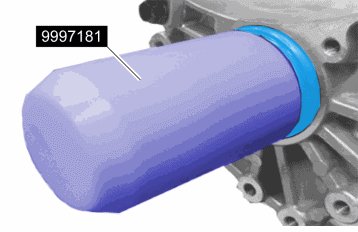

999 7181 Drift 999 7181 Drift

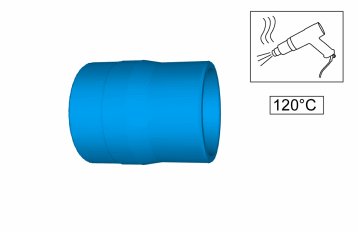

Warning! Make sure that the component is at ambient air temperature.

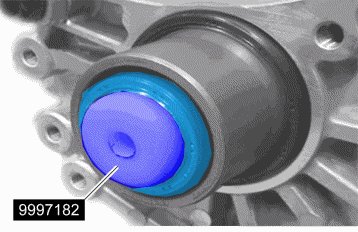

999 7182 Drift 999 7182 Drift









Installation

Install bevel gear Refer to: Bevel gear Bevel Gear Bevel gear, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Bevel Gear

Carry out: gearbox oil level - check
