Flex Plate: Service and Repair

Carrier plate

Operation number: 21621-3






Removal

Remove transmission Refer to: Transmission, Transmission

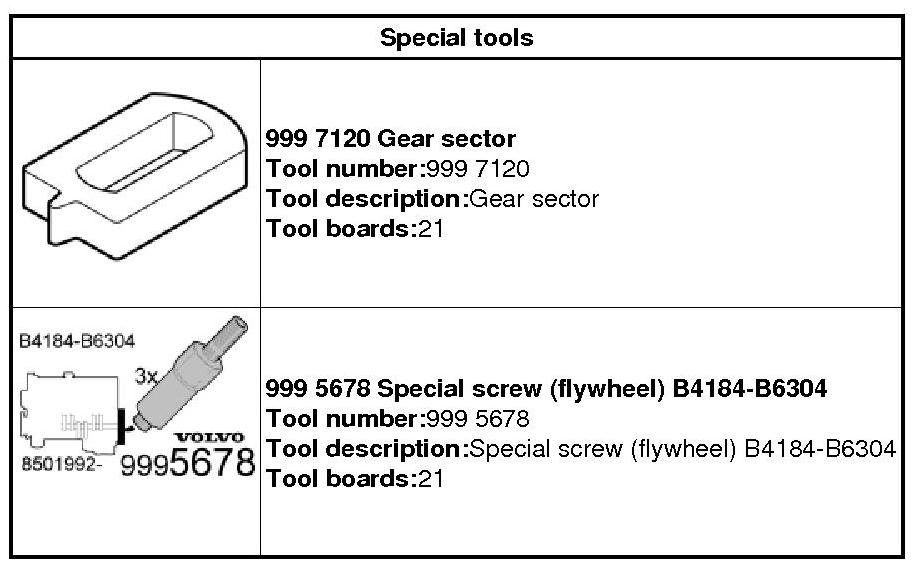

999 7120 Gear sector 999 7120 Gear Sector

Installation

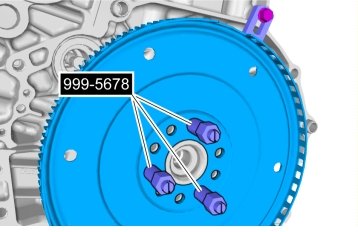

999 5678 Special screw 999 5678 Special Screw

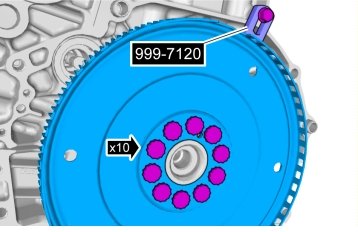

999 5678 Special screw 999 5678 Special Screw 999 7120 Gear sector 999 7120 Gear Sector
Torque: Flexplate, 80 Nm

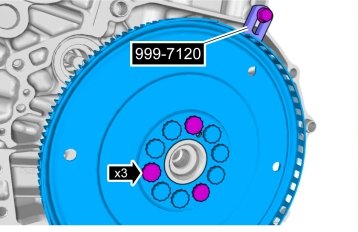

999 7120 Gear sector 999 7120 Gear Sector
Torque: Flexplate, 80 Nm




999 7120 Gear sector 999 7120 Gear Sector
Torque: Flexplate, 80 Nm

Install the transmission Refer to: Transmission, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Transmission Transmission, B6324S5, TF-80SC, B6324S4, TF-80SC Transmission
