Sealing Ring, Driveshaft, Front Left

Sealing ring, driveshaft, front left

Operation number: 46624-2






Removal

Remove left-hand drive shaft Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Driveshaft Left





Warning! Be prepared to collect escaping fluid.

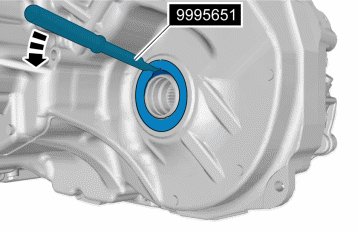

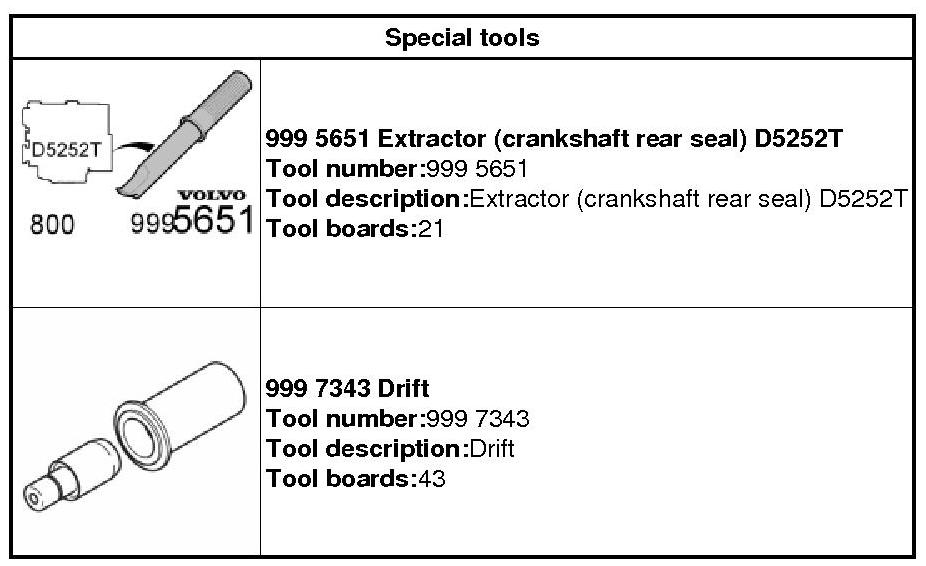

999 5651 Extractor 999 5651 Extractor

Installation

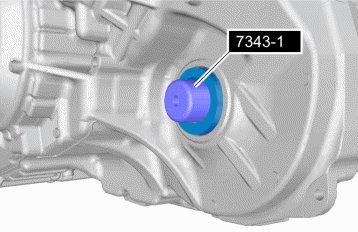

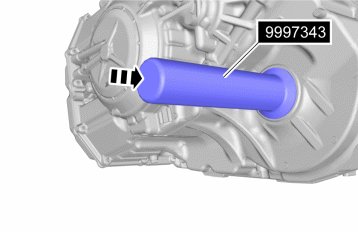

999 7343 Drift 999 7343 Drift





To install, reverse the removal procedure.

Carry out: gearbox oil level - check
