Rear Halfshaft Seal

Rear Halfshaft Seal






Removal

Remove the following items:
- the wheel Refer to: Wheels Service and Repair

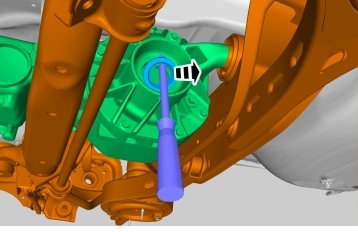

- Rear drive axle

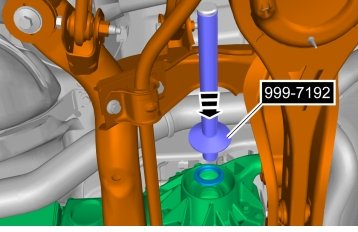

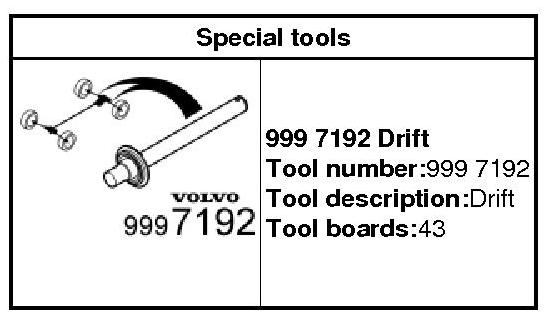

999 7192 Drift 999 7192 Drift

Installation

To install, reverse the removal procedure.

Perform final drive oil level, check Refer to: Differential Fluid Level Check, TF-80SC AWD Differential Fluid Level Check
