Rear Drive Axle

Rear drive axle

Operation number: 46601-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove rear spring Refer to: Spring, TF-80SC, TF-80SC AWD Spring, Rear

Vehicles without load-leveling shock absorbers




Torque: Rear shock absorber to wheel knuckle, 175 Nm

Vehicles with load-leveling shock absorbers




Torque: Rear shock absorber to wheel knuckle (Nivomat), 280 Nm

All vehicles

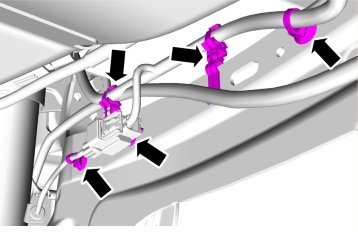

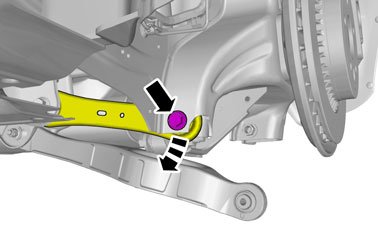

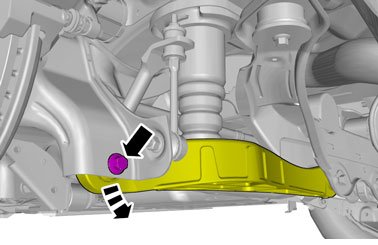

Torque: Lower arm rear to wheel knuckle, 110 Nm





Caution! Make sure that the ball joint ball does not rotate.

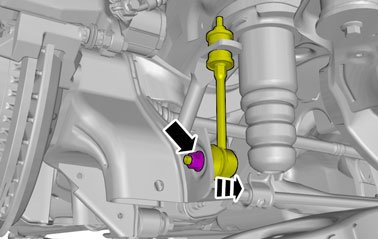

Torque: Rear stabilizer bar link to lower stabilizer bar, 60 Nm




Torque: Tie rod to longitudinal stay, 110 Nm

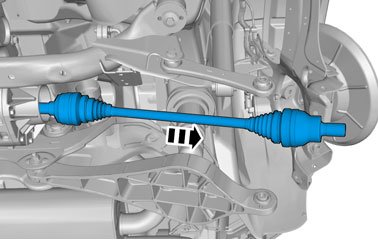

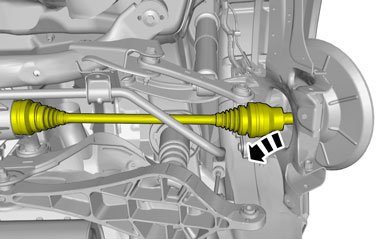

Torque: Driveshaft to wheel hub (rear), 35 Nm








Torque: Wheel knuckle rear to body, 180 Nm









Note! This step requires the aid of another technician.





Note! This step requires the aid of another technician.

Vehicles early version

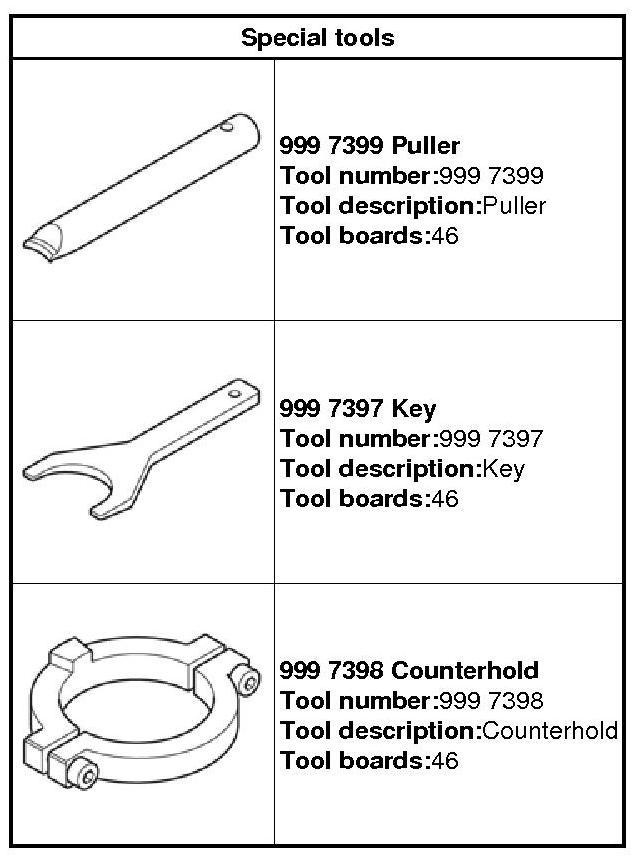

999 7399 Puller 999 7399 Puller

Vehicles late version








999 7397 Key 999 7397 Key 999 7398 Counterhold 999 7398 Counterhold

All vehicles





Installation

To install, reverse the removal procedure.
