Driveshaft Left

Driveshaft left

Operation number: 46630-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel. Refer to: Wheels Service and Repair.

Remove the wheel spindle from the link arm. Refer to: Front control arm Front Control Arm Front control arm Front Control Arm





Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

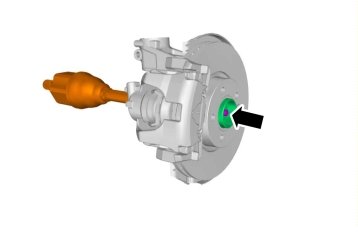

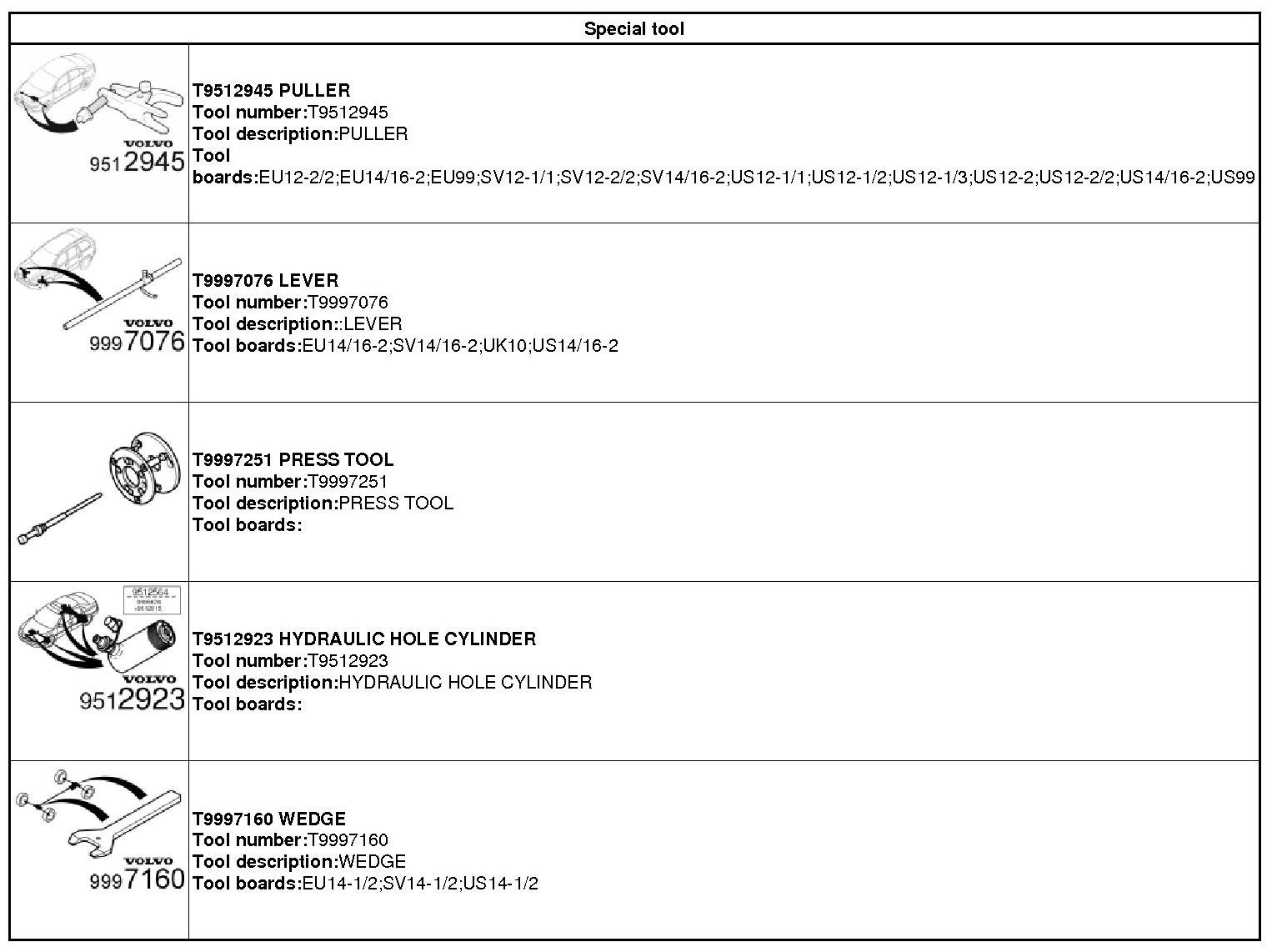

999 7251 Press tool 999 7251 Press Tool and 951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder.

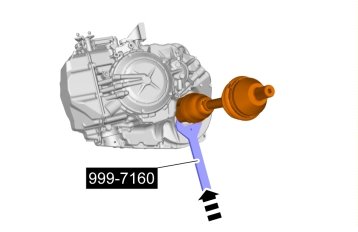

999 7160 Key 999 7160 Key

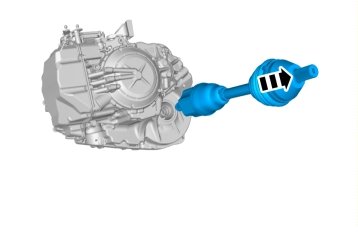

Caution! Caution! Do not damage the drive shaft seal when removing the drive shaft from the gearbox.

Installation

To install, reverse the removal procedure
