Shift Cable: Service and Repair

Gear selector cable

Removal

Note! Removal steps in this procedure may contain installation details.

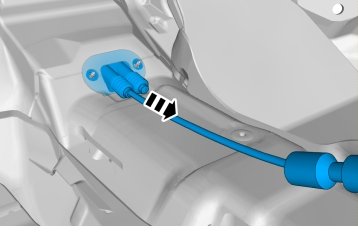

Remove the following items:
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair Air cleaner housing, B6324S5, B6324S4 Service and Repair
- battery Refer to: Battery Removal and Replacement Battery, B6304T4, B6324S5, B6324S4 Removal and Replacement




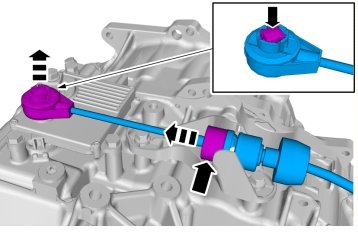

Torque: M6, 10 Nm













Warning! Wear safety goggles, protective gloves and ear protectors.













Remove the following items:

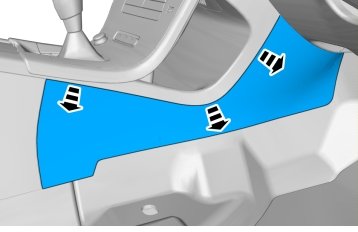

- Floor console Refer to: Floor console, TF-80SC, TF-80SC AWD Floor Console
- General audio player module

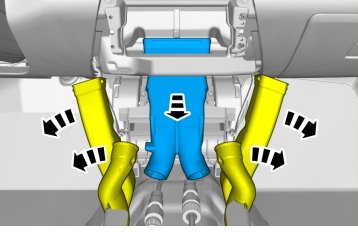

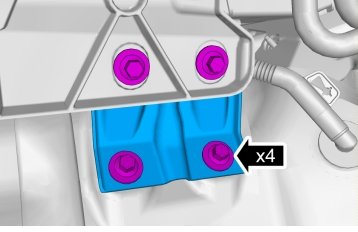

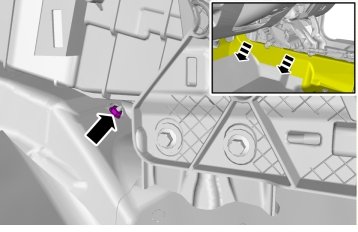

Torque: M6, 10 Nm




Torque: M8, 24 Nm

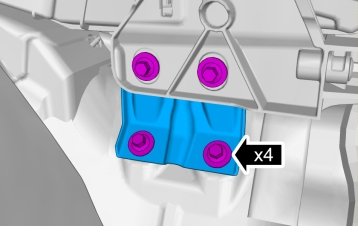

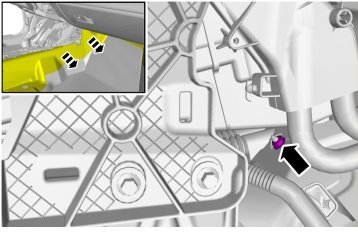

Torque: M6, 10 Nm




Torque: M8, 24 Nm





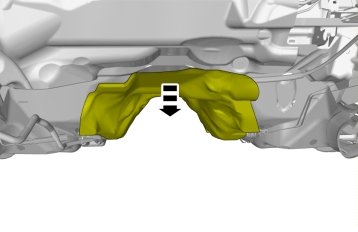

Installation

To install, reverse the removal procedure.

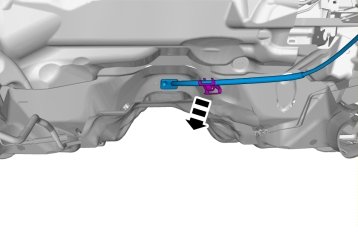

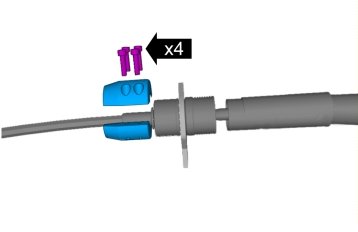

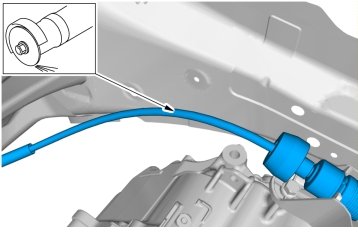

Torque: M4, 3,5 Nm

Adjust the gear selector cable Refer to: Gear selector cable, adjusting, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Adjustments
