Instruments - P3X(R) Trip Computer

Retailer Technical Journal 21915
P3X trip computer "Current speed"

Date 10-16-2009

Reference: Owner's Manual

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

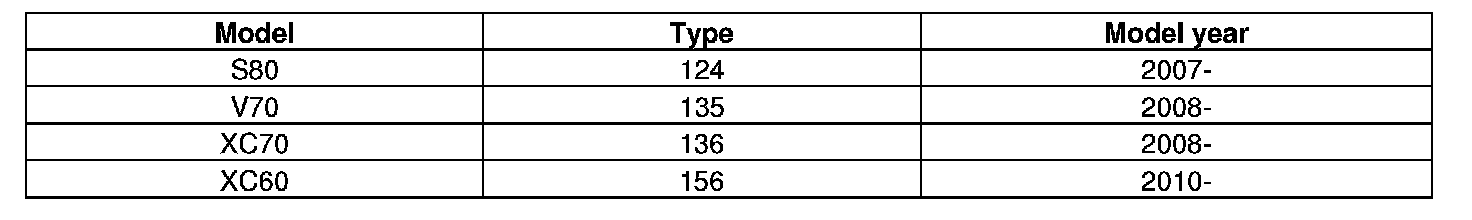

AFFECTED VEHICLES





DESCRIPTION:
One of the values available in the P3X trip computer is "Current Speed"
The purpose of this value is to provide the driver with an instantaneous conversion of the road speed if the vehicle is driven across the U.S./Canadian border.

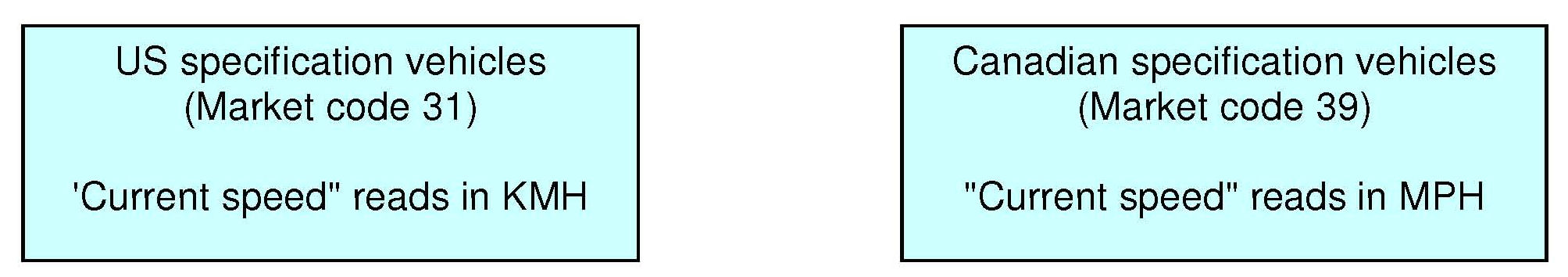

The "Current Speed" unit of measure will differ depending on the Market specification of the vehicle and cannot be changed.

SERVICE:
Do not replace any parts. The "Current Speed" unit of measure in the trip computer is bundled within the market specification of the DIM (Driver Information Module) SW (software) and cannot be changed.
