Campaign 223 - ECM Update For 'SOOT FILTER FULL' Message

Status: Released

Status Date: 2010-04-08

Issue Date: 2010-04-01

Reference: VIDA, SMB 28-223

Title: Service Action 223 DIM message "SOOT FILTER FULL" shown on petrol cars

Ref. No U522151.1.3 en-SB

Issuer -

Partner: 3 US 7510 Volvo Cars North America

Func Group: 2800

Func Desc: Ignition and control system

Attachment

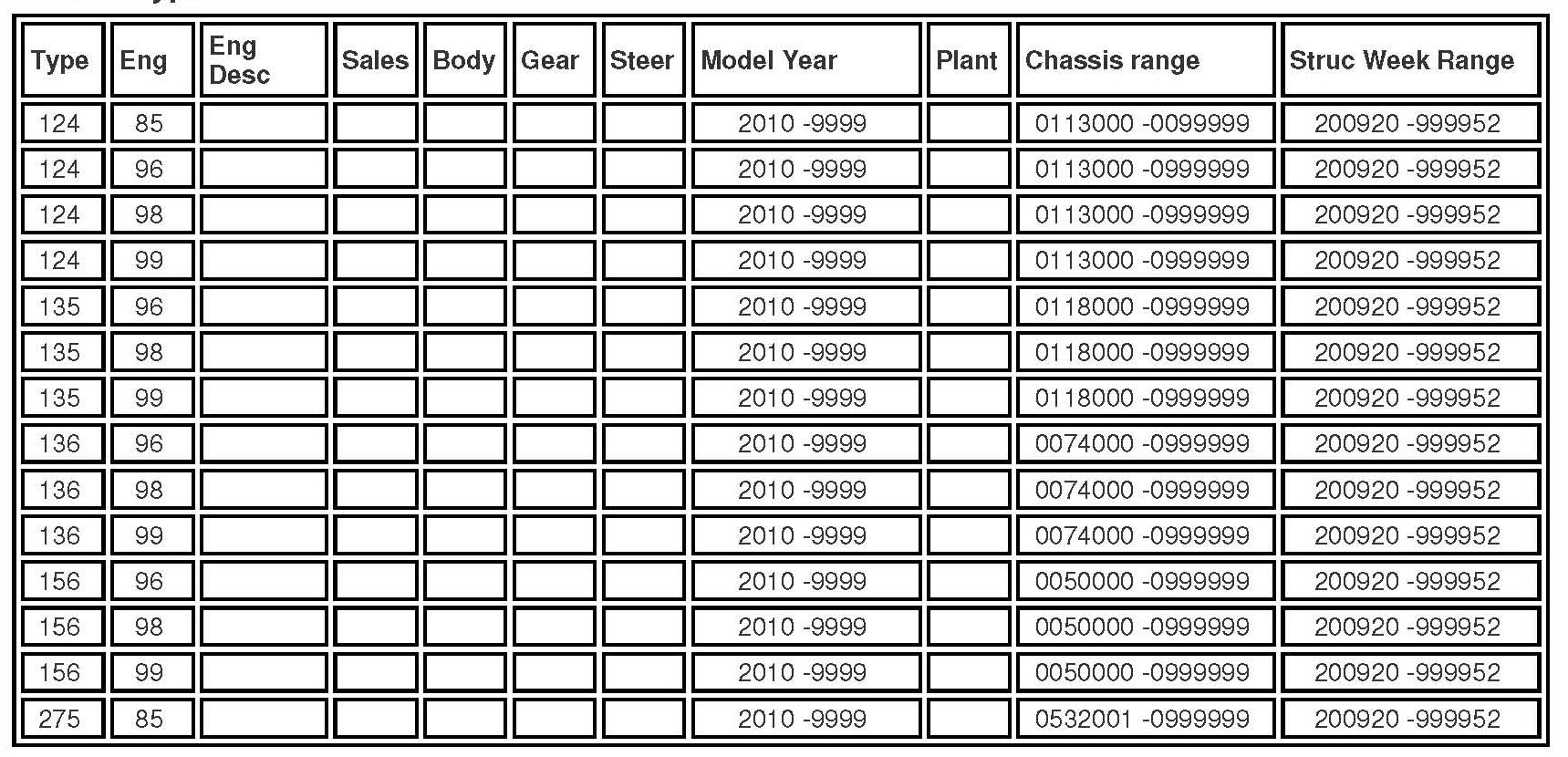

Vehicle Type

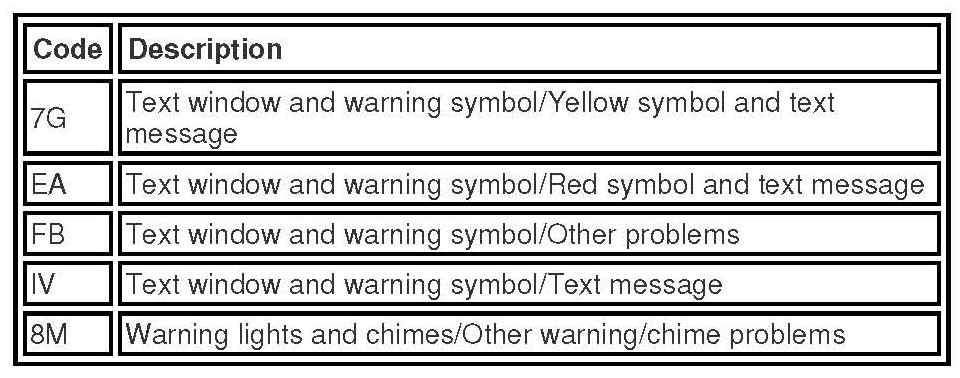

CSC

DTC

Text

NOTE! THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL JOURNAL RTJ 22151 DATED 03-11-2010. PLEASE UPDATE YOUR FILES.

CSC = Customer Symptom Code

DESCRIPTION:

If a DTC (diagnostic trouble code) is posted in the ECM (engine control module) the DIM (driver's information module) message "SOOT FILTER FULL SEE MANUAL" may be shown even though the car does not have a soot filter. This is due to a software bug in the ECM.

This message will not inhibit the OBD II (on board diagnostic) system from illuminating the check engine light nor monitoring detecting and subsequently storing a corresponding DTC in system memory.

PRODUCT MODIFICATION: New ECM software.

SERVICE: Perform ECM upgrade.
