Stabilizer Bar: Service and Repair

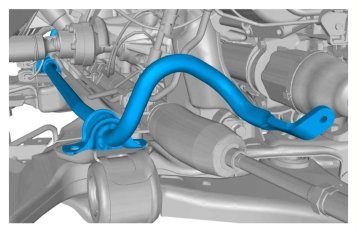

Front Stabilizer Bar

Operation number: 76202-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the upper torque rod Refer to: Upper torque rod Upper Torque Rod

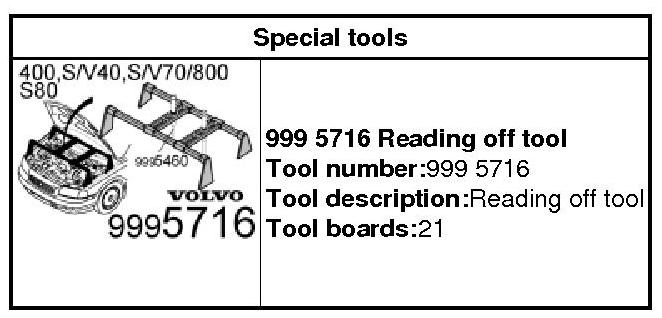

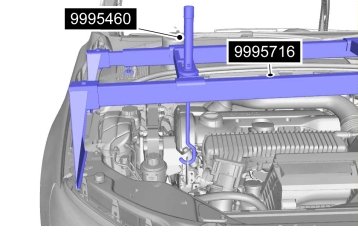

999 5716 Reading off tool 999 5716 Reading Off Tool

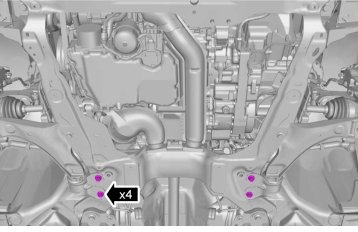

Torque: Lower arm front to subframe (rear mounting), 175 Nm

Perform subframe front Refer to: Front subframe, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Service and Repair





Installation

To install, reverse the removal procedure.
