Power Steering Delivery Pipe

Power steering delivery pipe

Operation number: 64532-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove battery Refer to: Battery Removal and Replacement




Torque: M8, 24 Nm

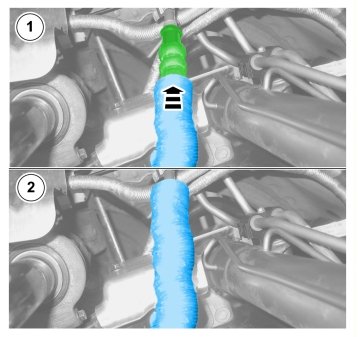

Remove the air filter housing Refer to: Air cleaner housing, B6324S5, B6324S4 Service and Repair Air cleaner housing, B6304T4 Service and Repair




Torque: M6, 10 Nm




Torque: Pressure line to power steering pump, 30 Nm

Remove right front wheel Refer to: Wheels Service and Repair









Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

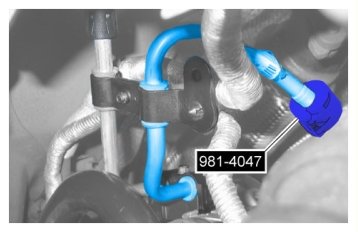

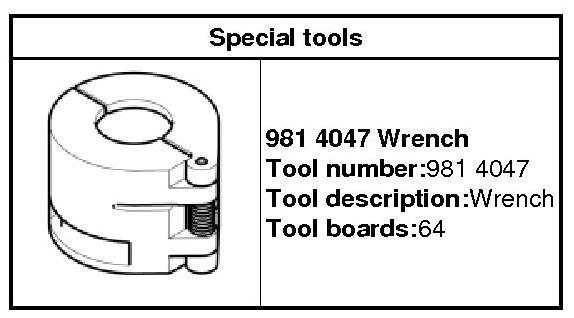

981 4047 Wrench 981 4047 Wrench




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.





Warning! Make sure that the component is protected.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding Service and Repair
