Control Module Relay Box Passenger Compartment

Control module relay box passenger compartment

Operation number: 37206-2

Removal

Caution! The instrument cluster and generic electronic module (GEM) must only be removed and new ones installed and loaded with software 1 at a time.

Check according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/CEM/Checking communication and control module

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Remove glove compartment Refer to: Glove compartment Glove Compartment

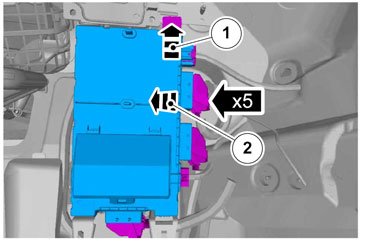

Vehicles early version





Note! Make sure that the component terminals are not bent or damaged.

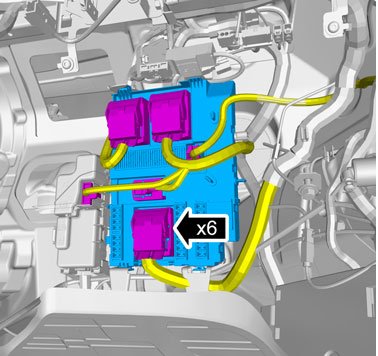

Vehicles late version









Note! Make sure that the component terminals are not bent or damaged.

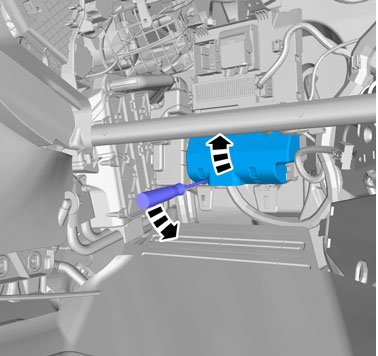

All vehicles

Installation

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning
