Central Electrical Unit Engine Compartment

Central electrical unit engine compartment

Operation number: 37224-2

Removal

Note! Removal steps in this procedure may contain installation details.

Note! Note the position of each component before removal.

Remove the following items:
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair
- battery Refer to: Battery Removal and Replacement Battery, B6304T4, B6324S5, B6324S4 Removal and Replacement

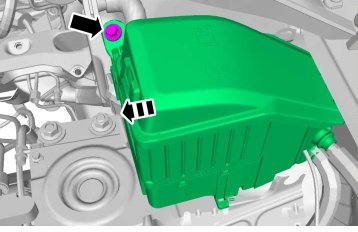

Torque: M6, 10 Nm

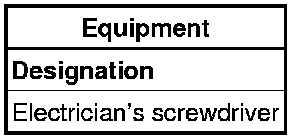

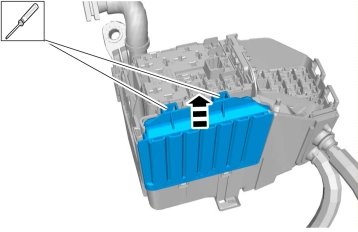

Use: Electrician's screwdriver.

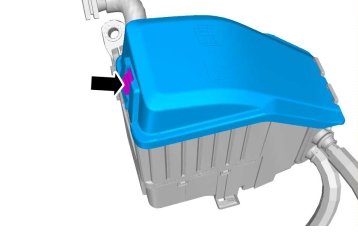

Torque: M6, 10 Nm

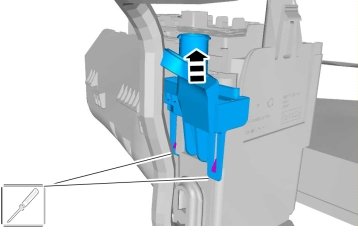

Caution! Make sure that no part of the wiring harness is trapped.

Note! Make sure that the seal is correctly located.

Installation

To install, reverse the removal procedure.
