Front Wheel Brake

Brake pads, front

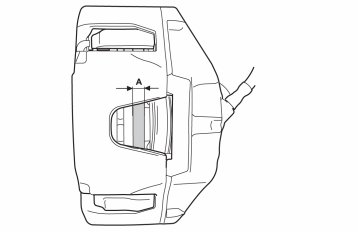

Note! Brake lining measured in situ in brake calliper.

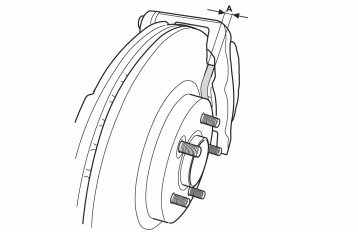

The images show examples of where the lining thickness can be measured.

Note! The rear plate of the brake lining is not included in measurement specifications.
