Alignment

NOTE: This article contains changes called out by Retailer Technical Journal 19674

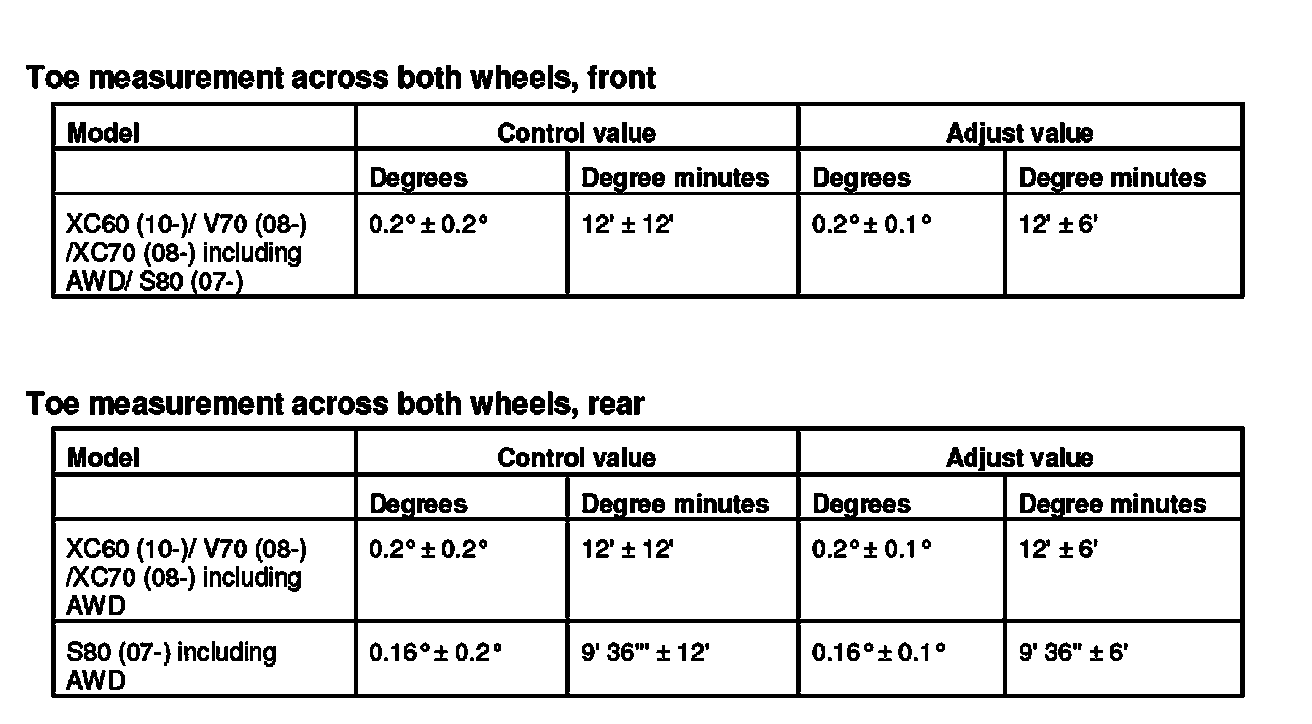

Adjusting toe angle, a
Adjusting to positive values generates toe-in angle while adjusting to negative values generates toe-out angle.

Note! All published toe values are for total toe measurement (left and right wheels together).

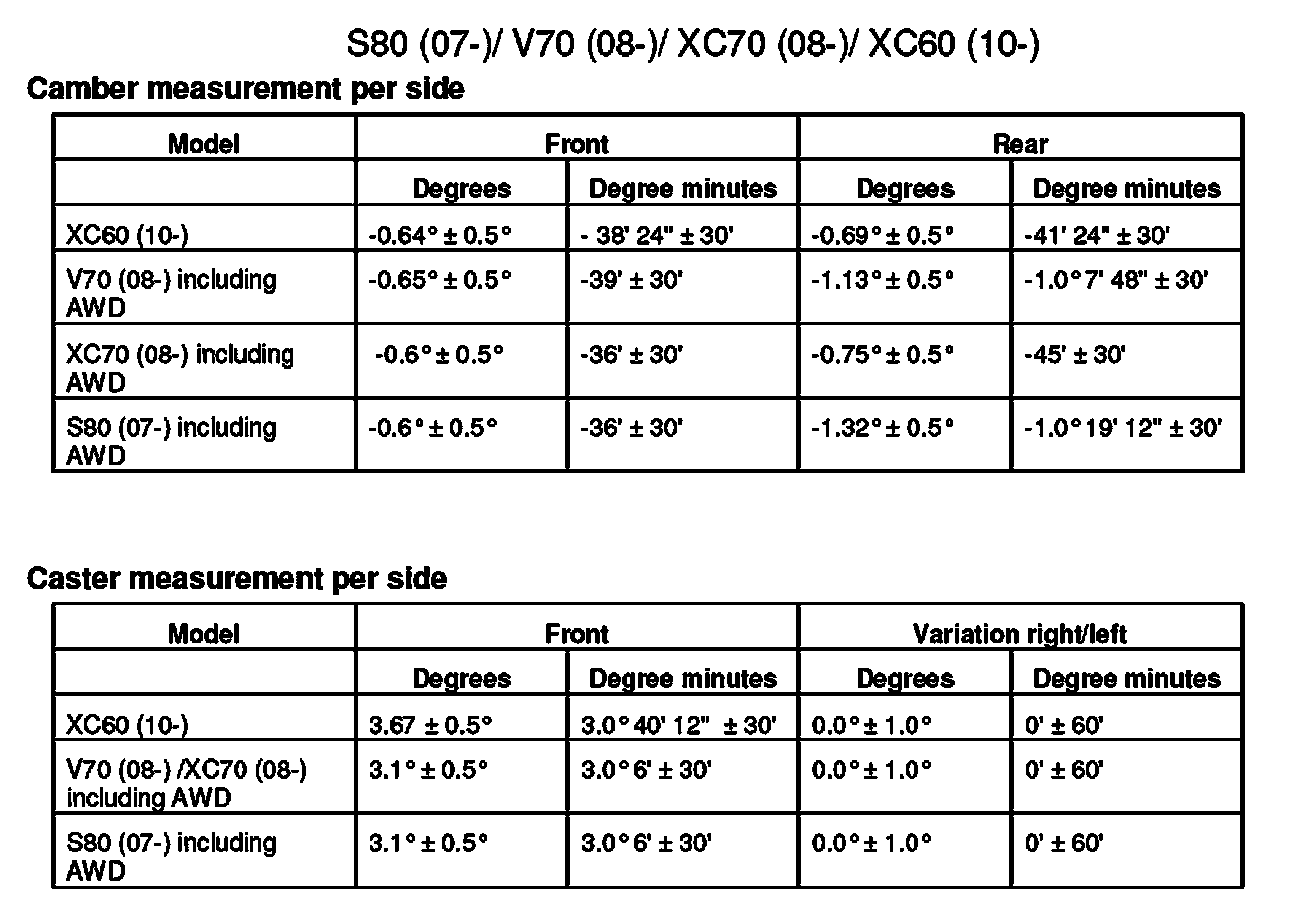

S80 (07-), V70 (08-), XC70 (08-), XC60 (10-)
