Refrigerant Oil






Refrigerant Oil





Measure the volume of the oil drained from the compressor

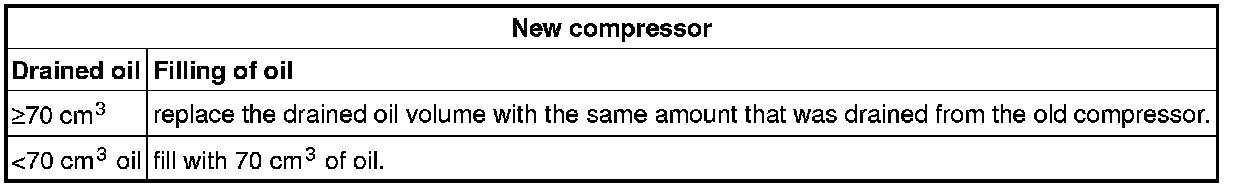

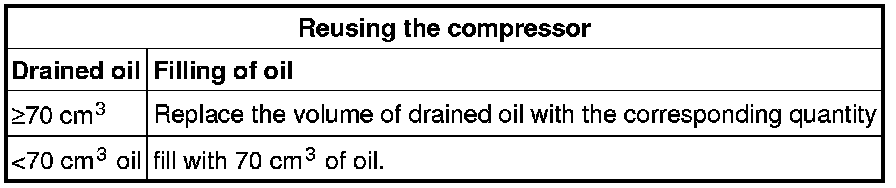

Replace the volume of drained oil according to the tables below
