Collision Avoidance Sensor: Adjustments

Proximity Warning Radar Unit Adjustment

Operation number: 37012-2

Removal





Remove the radiator masking Refer to: Radiator Grille Removal and Replacement

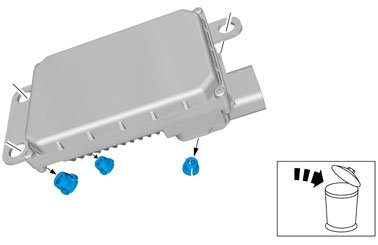

Caution! If accidentally dropped install a new sensor.





Installation

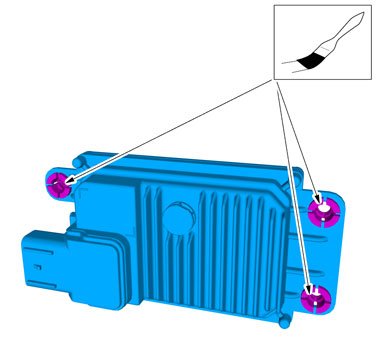

Note! Use soap solution.





To install, reverse the removal procedure.

Order and download appropiate softwear. Programming and Relearning

Perform radar collision warning Refer to: Proximity Warning Radar Unit Adjustment Adjustments
