Seat Belt Retractor, Rear

Seat belt retractor, rear

Operation number: 88404-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Information about handling and storage of pyrotechnic SRS components. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Disconnect the negative battery lead. Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting


Remove the following items:
- side panel. Refer to: Side panel loadspace Side Panel Loadspace
- seat cushion. Refer to: Seat cushion, rear seat Seat Cushion, Rear Seat
- seat bolster. Refer to: Side pad Side Pad

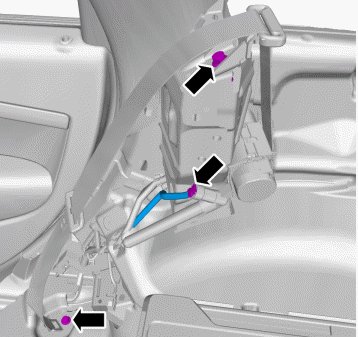

Torque: Safety belt retractor rear to body, 40 Nm

Detach the connector. Refer to: Igniter wire connector Igniter Wire Connector

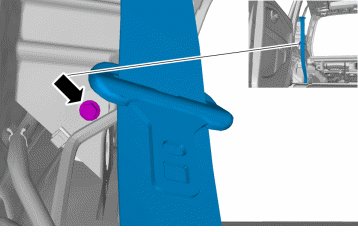

Torque: Safety belt retractor rear to body, 40 Nm

Installation

To install, reverse the removal procedure.

Check the seat belt function. Refer to: Seat belt function, check Testing and Inspection.

Carry out an inspection. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
