Seat Belt Guide Track: Service and Repair

Belt roller middle rear

Operation number: 88405-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Disconnect the negative battery lead. Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Information about handling and storage of pyrotechnic SRS components. Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

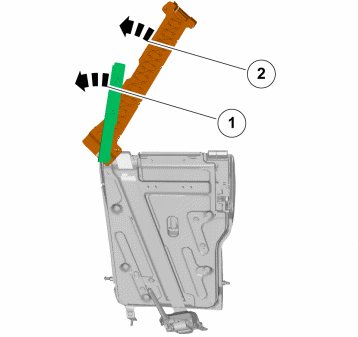

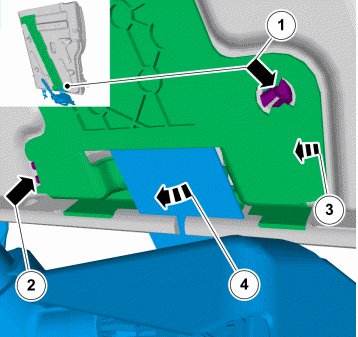

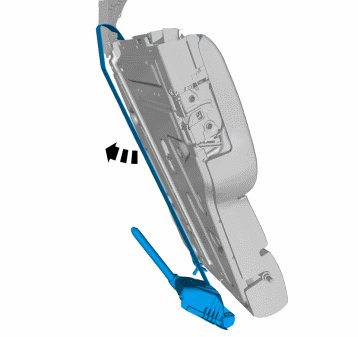

Remove the upholstery.

















Installation

To install, reverse the removal procedure.

Check the seat belt function. Refer to: Seat belt function, check Testing and Inspection.

Check once again. Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
