Front Safety Belt Buckle

Front safety belt buckle

Operation number: 88412-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Disconnect the battery ground cable. Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting.

Remove the front seat. Refer to: Front seat Front Seat.

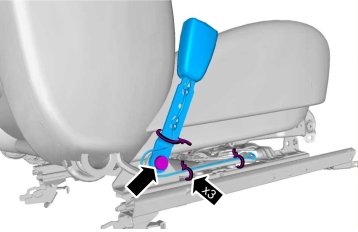

Torque: Buckle safety belt to seat , 45 Nm






Installation

To install, reverse the removal procedure.
