Safety Net, Nylon

Safety net, nylon























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Safety net, nylon

Installation




- Fold down the rear backrest.

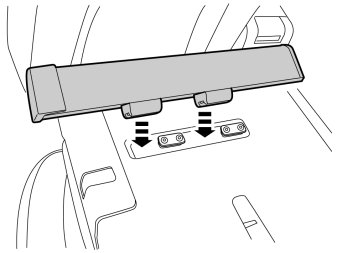

- Place the holder for the left-hand cassette (the shorter) to the left of the backrest's load retaining lugs, and position it against the backrest.

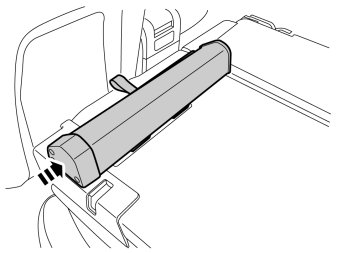

- Slide the cassette over the lugs towards the stop.

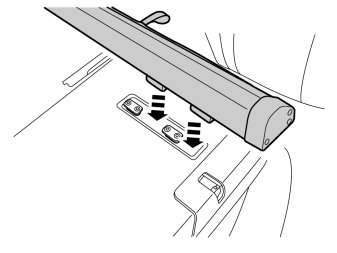

- Place the right-hand cassette's holder to the right of the backrest's load retaining lugs, and position it against the backrest.

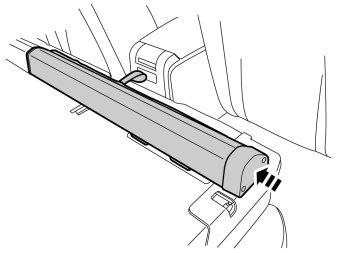

- Slide the cassette over the lugs towards the stop.

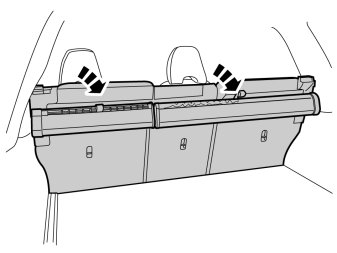

- Fold up the backrest.

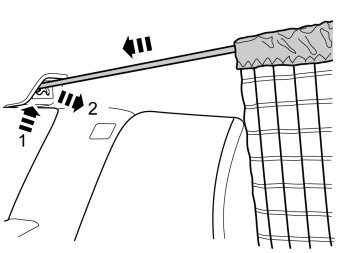

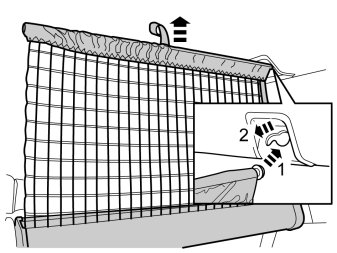

- Pull up the net for the right-hand cassette. Insert the end of the rod into the hole (1) in the mounting in the cantrail, and position the end at the front edge (2) of the mounting.





- Pull out the telescopic rod and position its left end in the mounting in the same way as for the right-hand side.

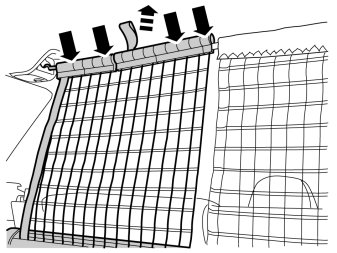

- Pull up the left-hand cassette's net and hook the net's hooks around the rod.
- Ensure that the hooks engage around the rod.

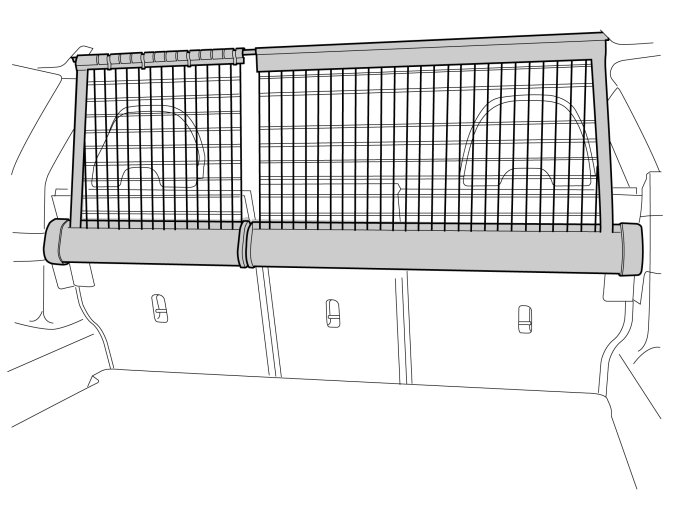

- Check that both ends of the rod are correctly positioned in the front edge of the holders in the cantrail.

Removal
- First unhook the left-hand net from the telescopic rod and allow it to roll in. Then remove the telescopic rod's left-hand mounting from the cantrail's mounting. Press in the telescopic arm, remove it from the right-hand mounting and allow the net to roll in.
