Child Seat, Padded Upholstery, Head Restraint - Outer Position, Rear Seat

Child seat, padded upholstery, head restraint - outer position, rear seat










INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Child seat, padded upholstery, head restraint - outer position, rear seat

Note! The foam pads must be removed for washing. See washing instructions on the upholstery.






Applies to the S40 (04-) and V50
- Pull up the head restraint.

Applies to the XC60/V70(00-)/V70XC(01-)/XC70
- Pull up and fold the head restraint forward.

For all car models

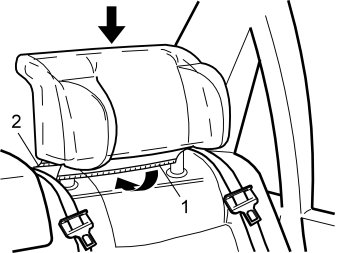

- Pull the padded upholstery over the head restraint.
- Pull tab (1) under the rear side on tab (2) and press tab (2) to secure the Velcro straps.


Applies to the S40 (04-) and V50
- Adjust the head restraint so that it provides optimum protection for the child's head.

Applies to the XC60/V70(00-)/V70XC(01-)/XC70
- Fold up the head restraint.
