Child Seat, Padded Upholstery, Backrest

Child seat, padded upholstery, backrest














INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Child seat, padded upholstery, backrest


Note! The foam pads must be removed for washing. See washing instructions on the upholstery.





Applies to the S40/V40/V50

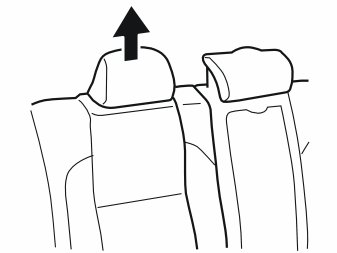

- Pull up the head restraint.

Applies to the XC60/V70 (-00)
- Pull up and fold the head restraint forward.

Applies to the V70 (00-)

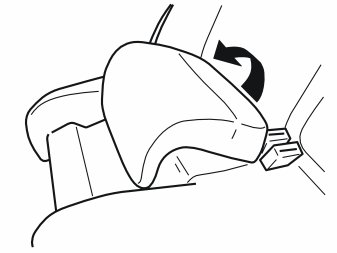

- Pull the strap, see the owner's manual, to fold the head restraint forward.





- Fold up the child seat and lift it up at the rear edge.

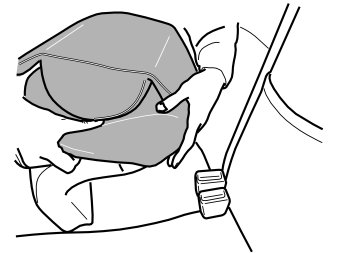

- Attach the padded upholstery on the rear edge of the seat cushion.
- Fold the seat cushion back into place.

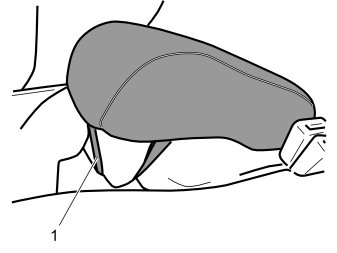

- Pull the padded upholstery over the seat cushion's front section and pull the retaining strap (1) under the front edge of the seat cushion.

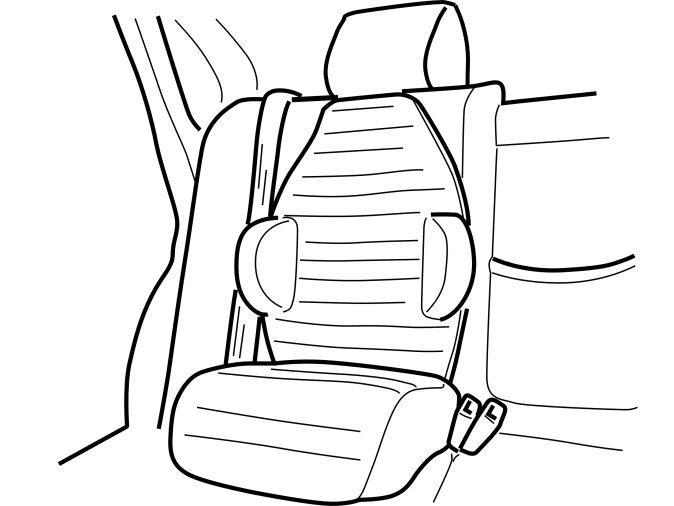

- Pull the padded upholstery up to the head restraint.

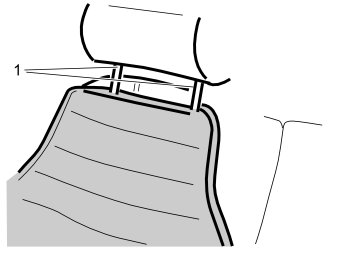

- Secure the padded upholstery's Velcro straps around the strut (1) of the head restraint.

Applies to the S40/V40/V50
- Adjust the head restraint so that it provides optimum protection for the child's head.

Applies to the XC60/V70
- Fold the head restraint up.
