Home >> Volvo >> 2010 >> XC70 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

Air Bag Systems: Locations






Component location

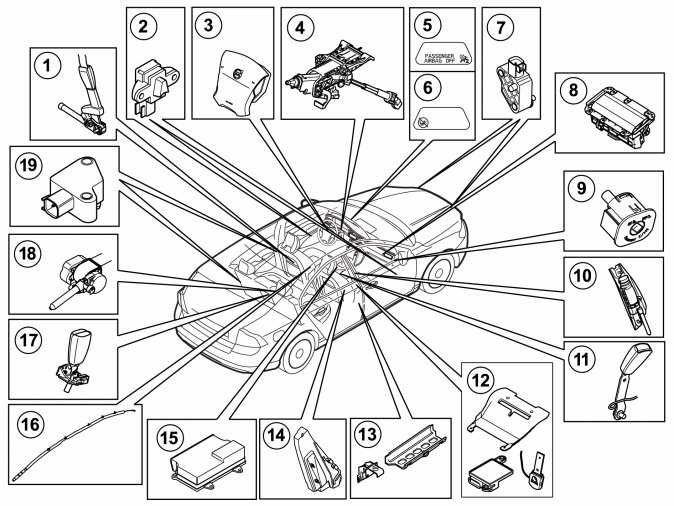

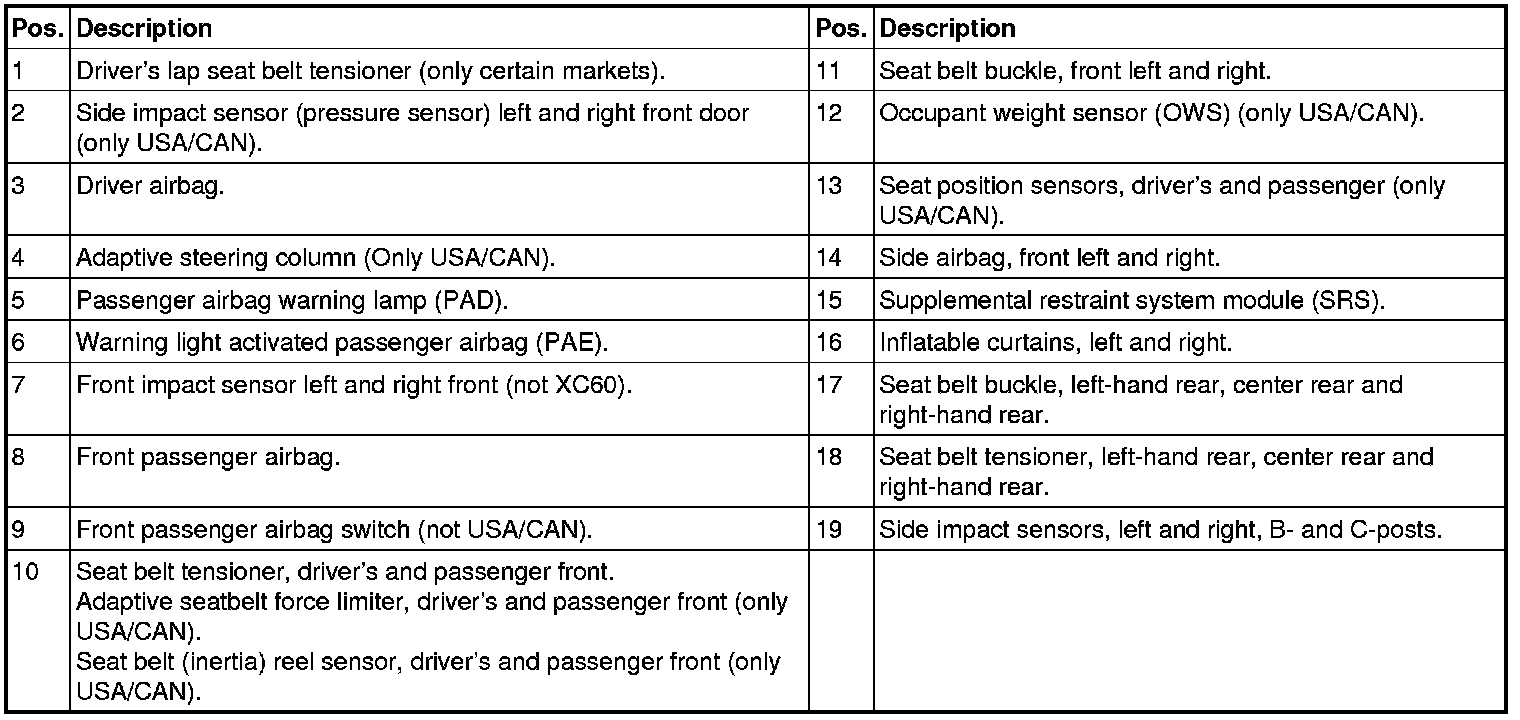

Component Location (Part 1):
