Changes Introduced Up to and Including June 2009

Supplemental Restraint System

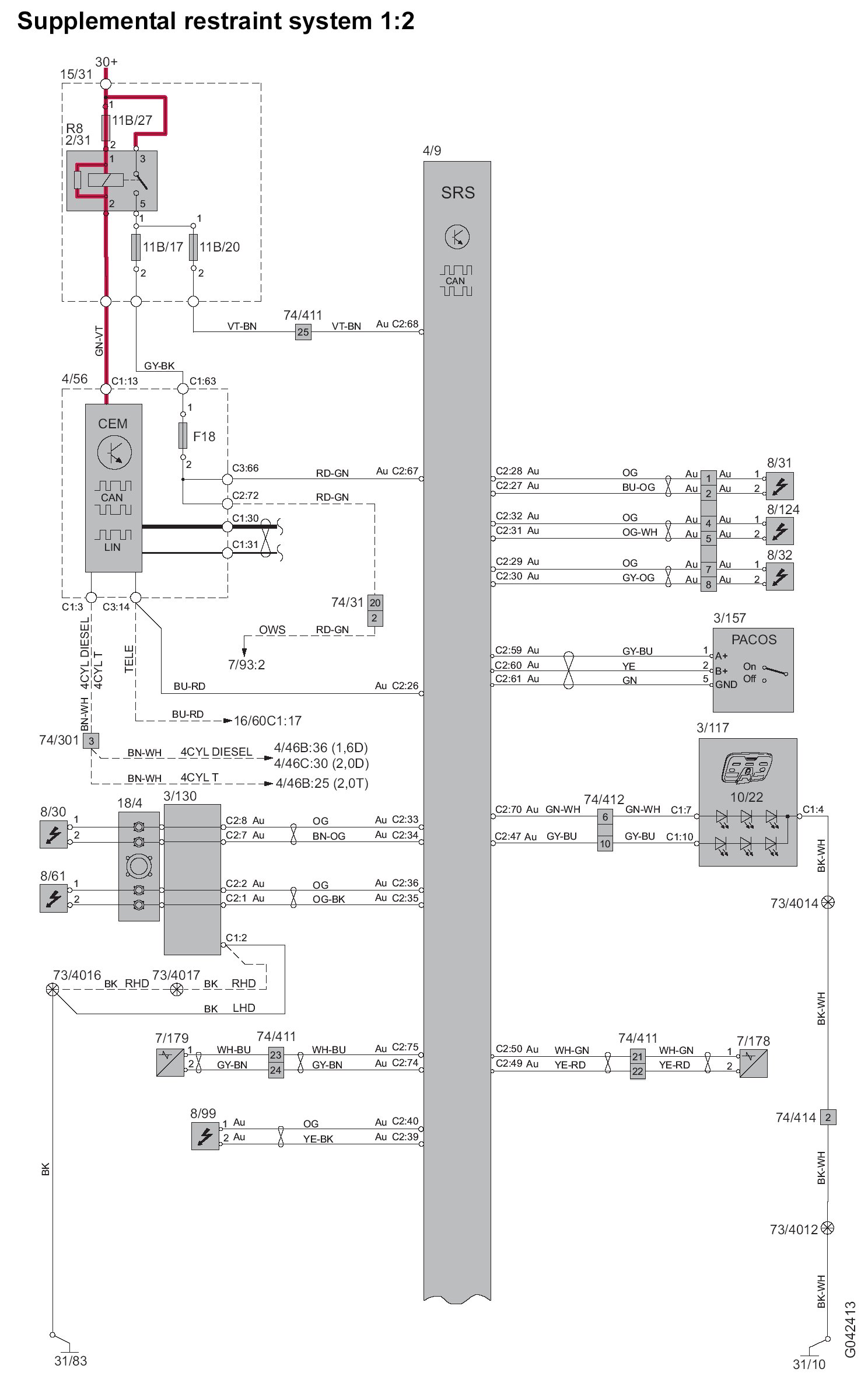

Supplemental Restraint System 1:2:

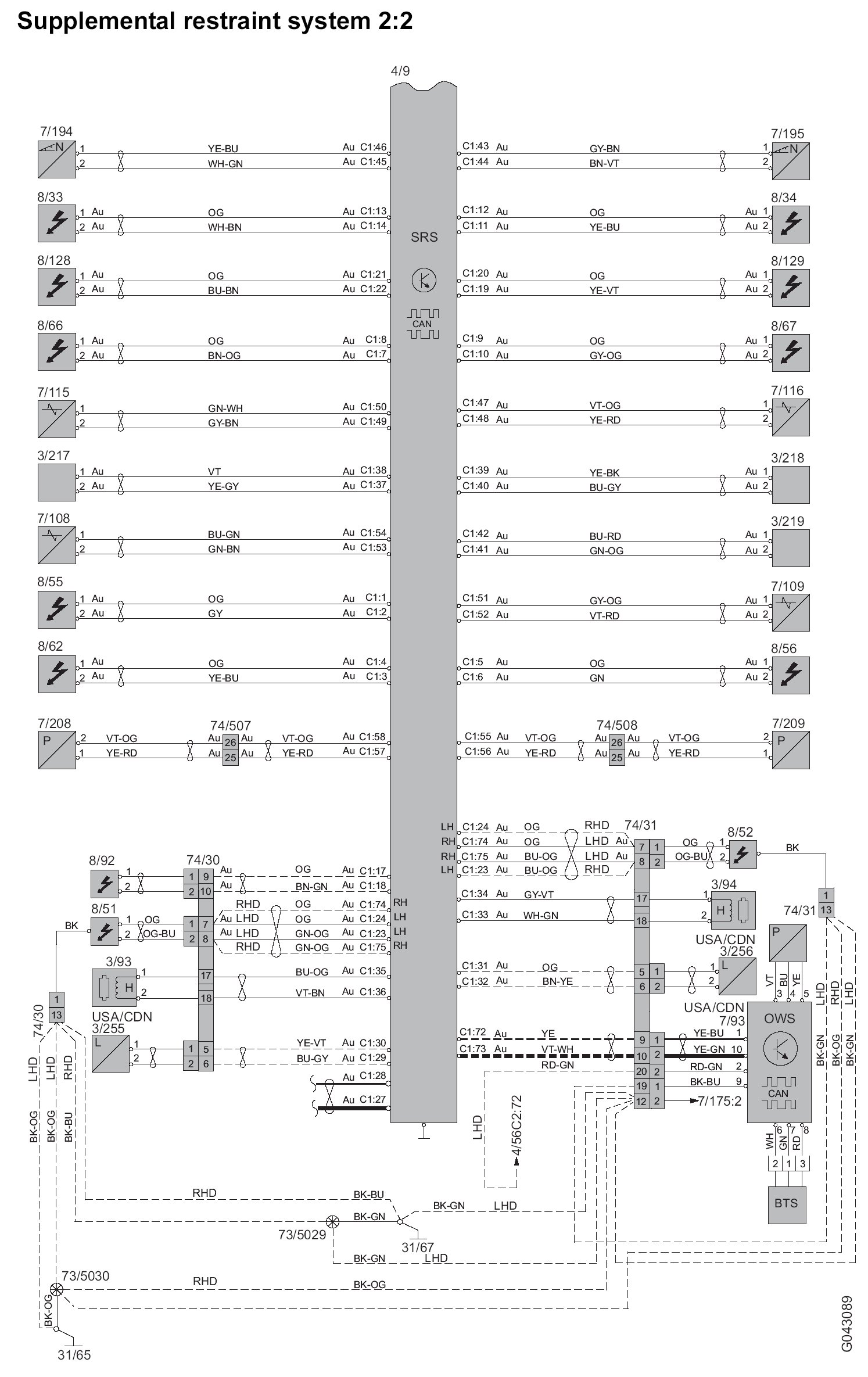

Supplemental Restraint System 2:2:

Diagram Legend: Changes Introduced Up to and Including June 2009

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including June 2009
