Driver's Airbag

Driver's airbag

Operation number: 88425-2

Removal

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

See information regarding the handling of non-deployed pyrotechnical parts Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Loosen upper panel Refer to: Panel steering column Service and Repair

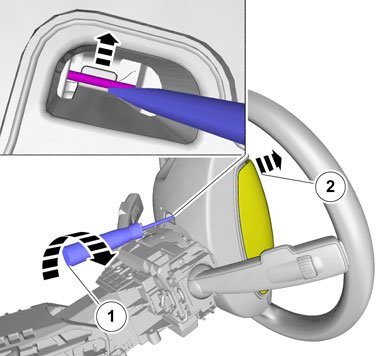

1.
2.
Note! This step requires considerable force.

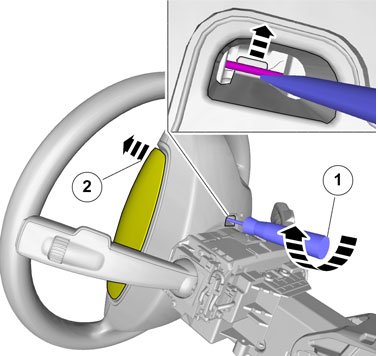

1.
2.
Note! This step requires considerable force.

Perform connector ignition cable Refer to: Igniter wire connector Igniter Wire Connector

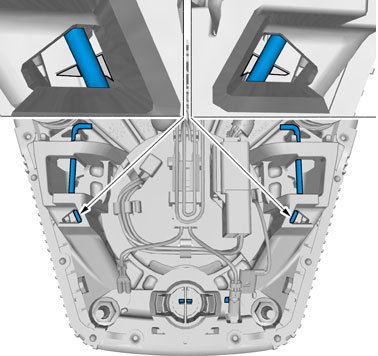

Warning! Make sure that the spring is correctly located in the lower spring seat.

Installation

Perform connector ignition cable Refer to: Igniter wire connector Igniter Wire Connector

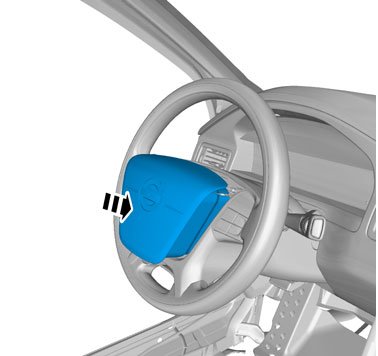

Warning! Make sure that the component has locked properly in position by pulling it towards you.

Install upper panel steering column Refer to: Panel steering column Service and Repair

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
