Airbag, Passenger Side

Airbag, passenger side

Operation number: 88428-2

Removal

Note! Removal steps in this procedure may contain installation details.

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting





Follow instructions about safety information pyrotechnical system Refer to: Safety information pyrotechnical systems Service Precautions

Follow instruction for handling of non-deployed pyrotechnical part Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Follow the instructions about positioning safety components. Refer to: Positioning safety labels

Remove glove compartment Refer to: Glove compartment Glove Compartment

Vehicles with cordless cellular phone

Remove the Bluetooth control module Refer to: Bluetooth control module Bluetooth Control Module Bluetooth control module Bluetooth Control Module

All vehicles

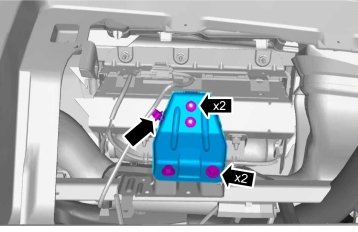

Torque: M6, 10 Nm

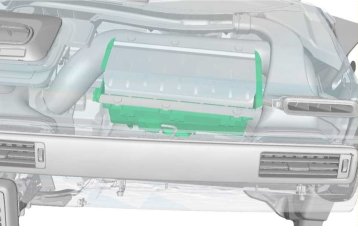

Torque: M6, 10 Nm

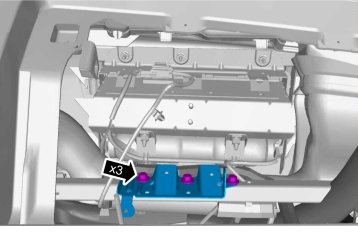

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
