Procedures

Airbag passenger (SRS), connecting






Activation

See the safety information regarding pyrotechnic systems Refer to: Safety information pyrotechnical systems Service Precautions

See information regarding the handling of non-deployed pyrotechnical parts Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Note! Deployed pyrotechnic components must be disposed of according to local regulations.

See information regarding the disposal of pyrotechnical parts Refer to: Discarding pyrotechnic components Discarding Pyrotechnic Components

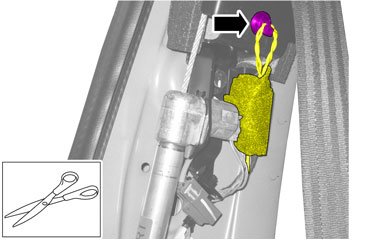

Remove seatbelt retractor front Refer to: Front safety belt retractor Front Safety Belt Retractor

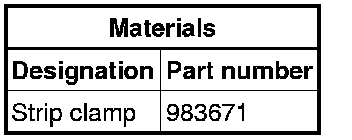

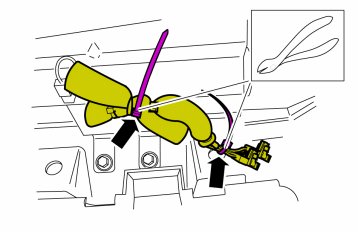

Use: Strip clamp, 983671

Warning! If permanently disabling or enabling the passenger air bag a new seat belt for vehicles without or with a passenger air bag must be installed.

Install seatbelt roll front Refer to: Front safety belt retractor Front Safety Belt Retractor





Remove glove compartment Refer to: Glove compartment Glove Compartment

Battery, disconnection Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting













Install the glove compartment Refer to: Glove compartment Glove Compartment

Follow the instructions regarding components with double-sided adhesive tape Refer to: Components with double-sided tape Removal and Replacement





Perform Battery, connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Order and download appropriate software. Programming and Relearning

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection

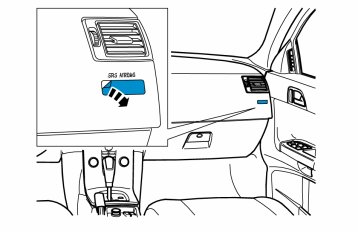

Follow instructions for connecting passenger airbag (srs), approval
