Wastegate Actuator: Service and Repair

Actuator turbo pressure (vacuum)

Operation number: 25533-2

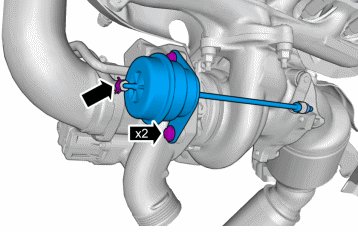

Removal





Remove the right drive shaft

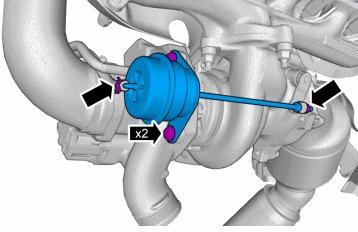

Installation




Torque: M6, 10 Nm

Wastegate Control Valve Adjustment Refer to: Wastegate Control Valve Adjustment, B6304T4 Adjustments





Install the following items:
1. Torque: M10, 50 Nm

2. Torque: Lower torque rod , 110 Nm

Install drive shaft right
