Fuel Pump: Service and Repair

Fuel pump and level sensor unit

Operation number: 23341-2






Removal

Remove fuel tank Refer to: Fuel tank, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S4, TF-80SC AWD Removal and Replacement

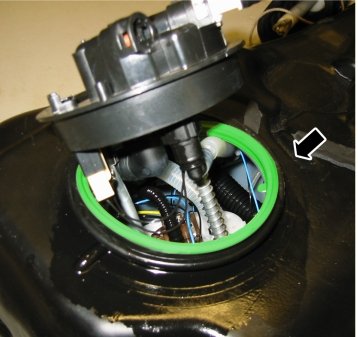

Caution! Note the routing of the lines and hoses.

Installation

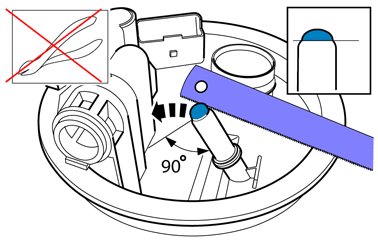

Vehicles with fuel fired booster heater

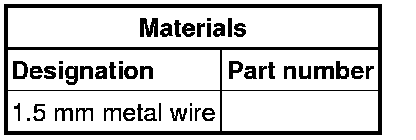

Use: 1.5 mm metal wire,





All vehicles

To install, reverse the removal procedure.
