Oil Filter: Service and Repair

Oil filter

Operation number: 22217-2

Removal

Warning! Hot fluid.

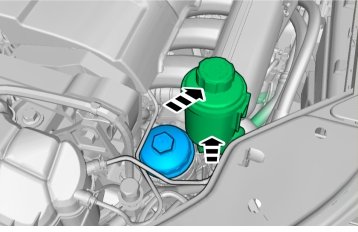

Torque: Cover oil filter, 25 Nm





Follow instructions for lifting points Refer to: Jacking points body Locations









Warning! Be prepared to collect escaping fluid.

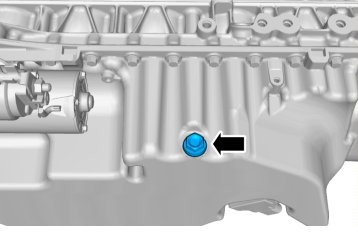

Torque: Drain plug oil pan, 38 Nm

Installation

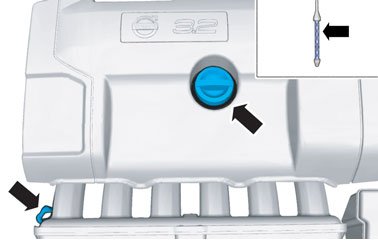

Caution! Make sure that fluid level is to the MAX mark.

Follow instructions for lubricant, engine Refer to: Lubricants, engine
