Drive Belt: Service and Repair

Accessory Drive Belt

Operation number: 21581-2

Removal

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair

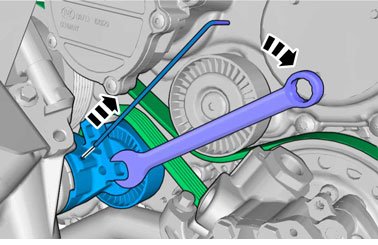

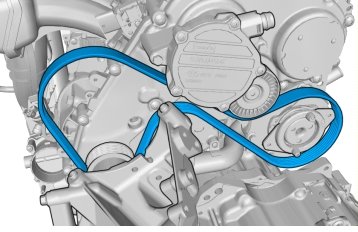

Use: Box wrench 19 mm.

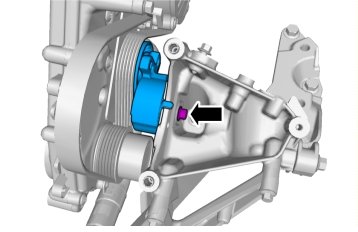

Use: Pin 3 mm.

Installation

Torque: M8, 24 Nm

Install the following items:
1.
2.
3.
4.
Note! Make sure that a new component is installed.

Install the following items:
1. Torque: M8, 24 Nm

2. Torque: M8, 24 Nm

3. Torque: M5, 5 Nm

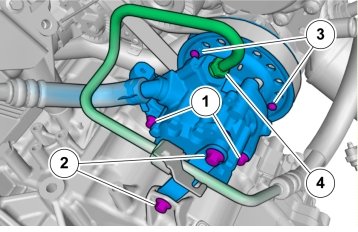

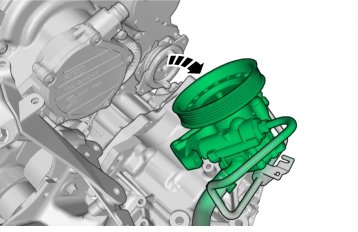

4. Torque: Pressure line to power steering pump, 30 Nm

Use: Box wrench 19 mm.

Install the following items:
1. Torque: M8, 24 Nm

2. Torque: M10, 50 Nm

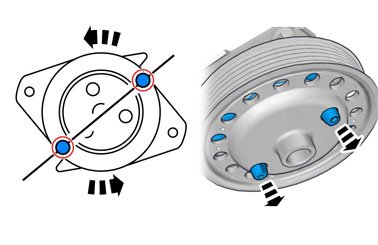

Install the following items:
1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm

Torque: M6, 10 Nm

Torque: M5, 5 Nm

Install the following items:
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair
- battery Refer to: Battery Removal and Replacement
