Headlamp Control Module (HCM)

Headlamp Control Module (HCM)

Operation number: 35256-2

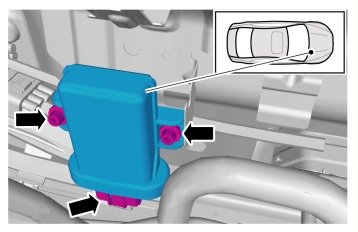

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the plenum cover Refer to: Plenum chamber Service and Repair




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software.
