Headlamps, Aligning

Headlamps, adjusting

Operation number: 35202-2

Adjustment

Vehicles with high intensity discharge headlamps





Calibrate according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/HCM/Calibrating position sensor

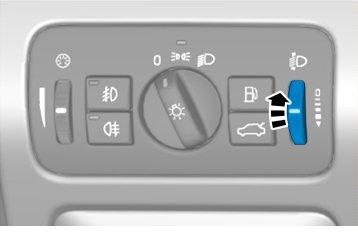

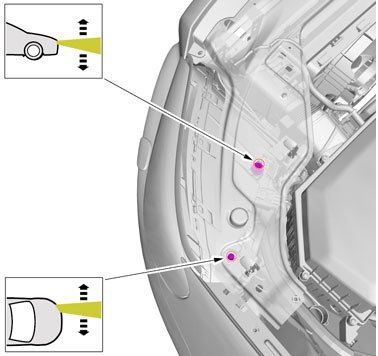

Vehicles with conventional headlamps

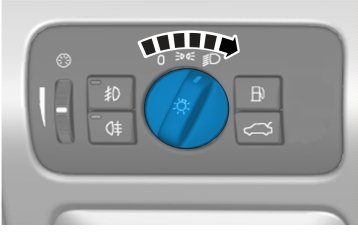

All vehicles









Follow the instructions regarding light pattern Refer to: Beam Description and Operation

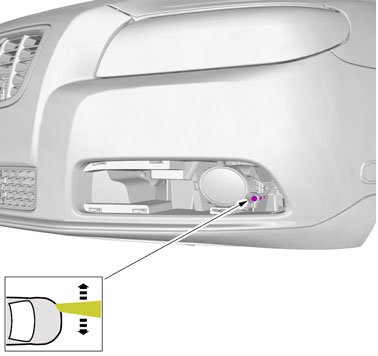

Vehicles with Front Fog Lamps

Remove cover Refer to: Front fog lights Procedures Front fog lights Procedures





All vehicles
