Fog Lamps

Fog lamps



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






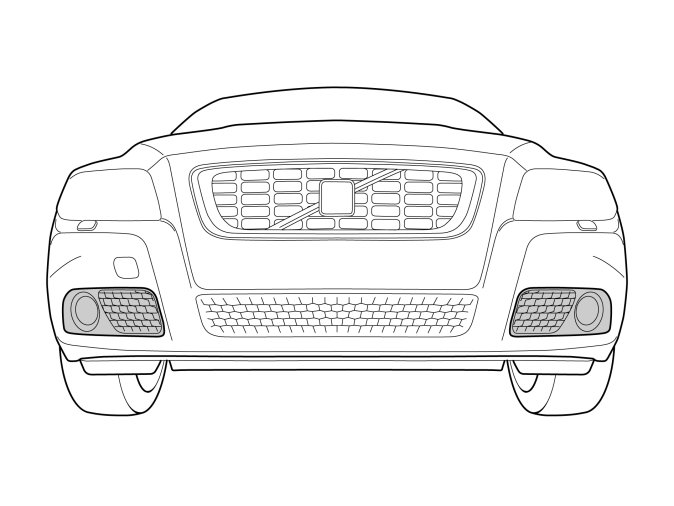

Fog lamps

Applies to the V70





- Turn the ignition key to position 0.

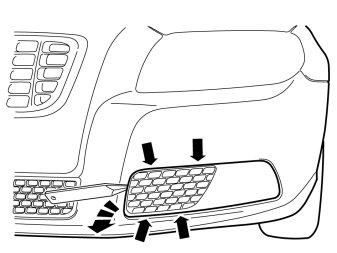

- Remove the left-hand cover panel under left-hand headlamp by carefully prizing loose the right-hand end face until the four clips on the inside release. Then unhook the left-hand end from the bumper shell.

Note! Do not damage the paintwork.

- Repeat the operation on the other side.

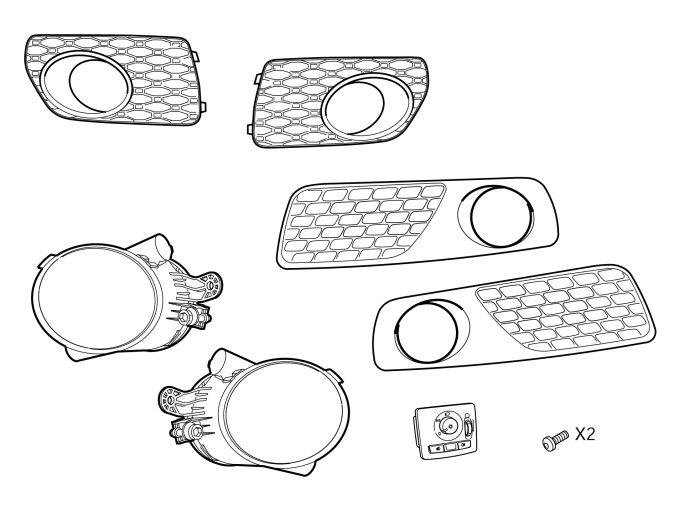

- Take a fog lamp and screw from the kit.

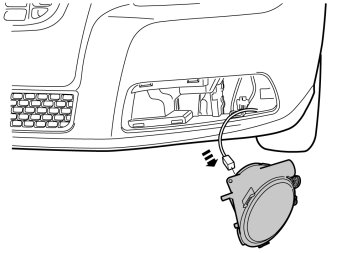

- Connect the fog lamp to the pre-routed cable on the inside of the bumper shell.
- Repeat the operation on the other side.


Illustration A

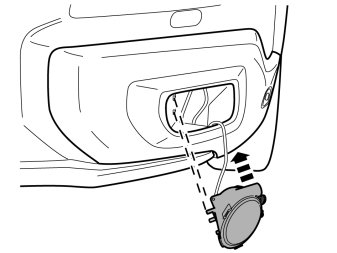

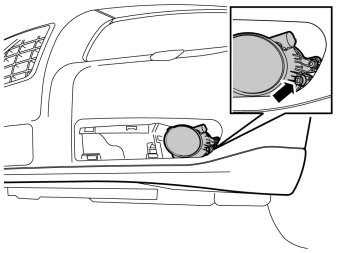

- Insert the two pins on the right side of the fog lamp in the recesses in the bumper shell.

Illustration B

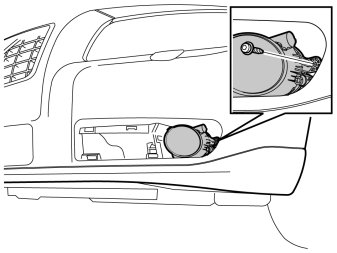

- Position the fog lamp retaining lug over the screw hole on the left side of the bumper shell and insert the screw.
- Repeat the operation on the other side.

Applies to the XC70





- Turn the ignition key to position 0.
- Remove the left-hand cover panel under left-hand headlamp by carefully prizing loose the right-hand end face until the four clips on the inside release. Then unhook the left-hand end from the bumper shell.

Note! Do not damage the paintwork.

- Repeat the operation on the other side.





- Take a fog lamp and screw from the kit.
- Connect the fog lamp to the pre-routed cable on the inside of the bumper shell.
- Repeat the operation on the other side.


Illustration A




- Insert the two pins on the right side of the fog lamp in the recesses in the bumper shell.

Illustration B




- Position the fog lamp retaining lug over the screw hole on the left side of the bumper shell and insert the screw.
- Repeat the operation on the other side.

Applies to the V70 and the XC70

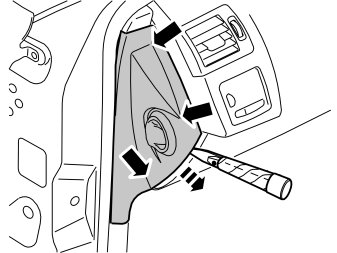

- Remove the left end of the dashboard by carefully prying it with a headlining tool until the two catches release. Pull the end panel off rearwards.

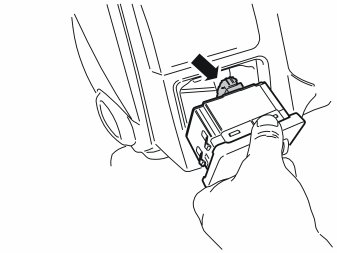

- Press the lighting keypad out of the dashboard. It is held in place with two locking tabs on the top side and two on the underside. Use a headling tool as necessary.

Note! Be careful with the dashboard as it may be difficult to remove the keypad.





- Unplug the connector from the keypad. Remove the connector. It will not be used again.
- Plug in the connector of the new keypad from the kit.
- Press the keypad into place in the dashboard.
- Program the software in accordance with the service information in VIDA.

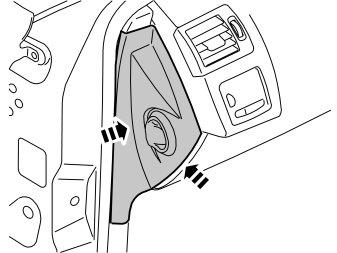

- Reinstall the dashboard end face panel.

Applies to the V70

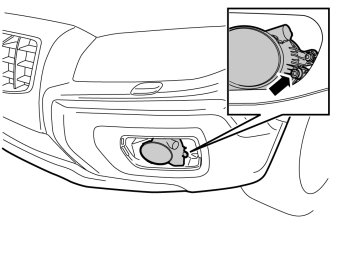

- Check the fog lamp's setting. Adjust as necessary using the adjuster screw.
- Repeat the operation on the other side.





- Take a new panel from the kit and press it into place (instead of the old one).
- Make sure that all retaining hooks engage.
- Repeat the operation on the other side.

Applies to the XC70

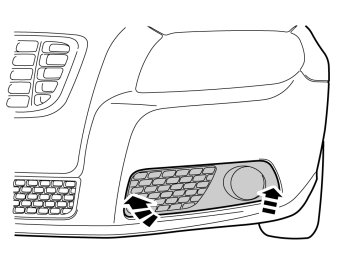

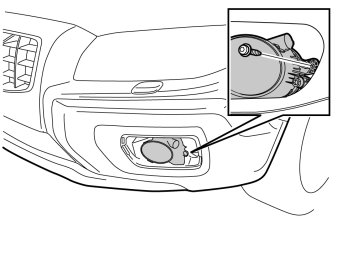

- Check the fog lamp's setting. Adjust as necessary using the adjuster screw.
- Repeat the operation on the other side.

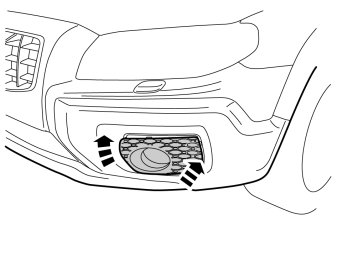

- Take a new panel from the kit and press it into place (instead of the old one).
- Make sure that all retaining hooks engage.
- Repeat the operation on the other side.
