Housing Assembly HVAC: Service and Repair

Climate control unit

Operation number: 87322

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the refrigerant Refer to: Refrigerant, draining Refrigerant, Draining

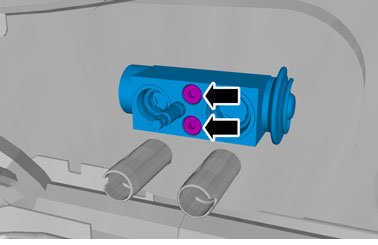

Remove the expansion valve Refer to: Expansion valve Service and Repair

Loosen coolant pump

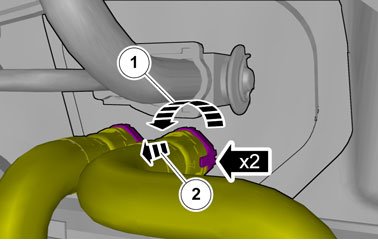

Warning! Be prepared to collect escaping fluid.




1. Torque: M6, 10 Nm

2.
Warning! Be prepared to collect escaping fluid.




Torque: M5, 5 Nm





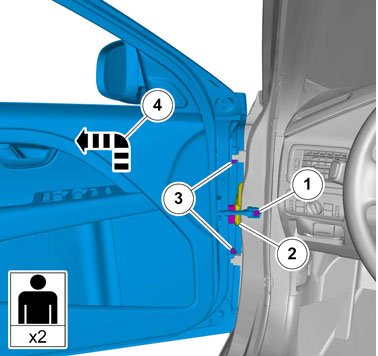

Caution! Take extra care when handling the component.

1. Torque: M6, 10 Nm

2.
3. Torque: M8, 24 Nm

4.

Remove the dashboard Refer to: Dashboard Dashboard
















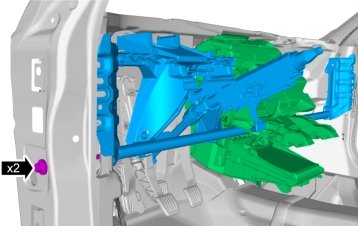

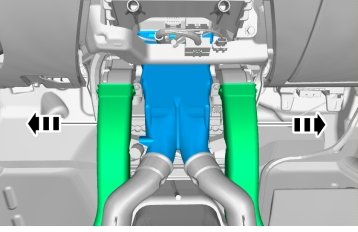

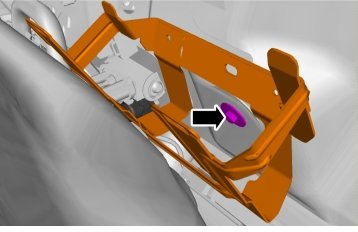

Torque: M8, 24 Nm




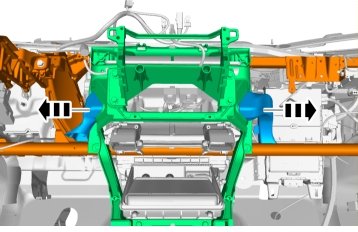

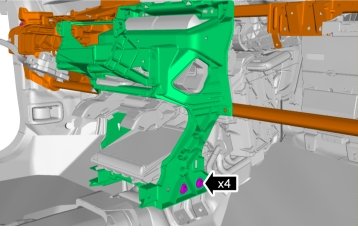

Torque: M6, 10 Nm




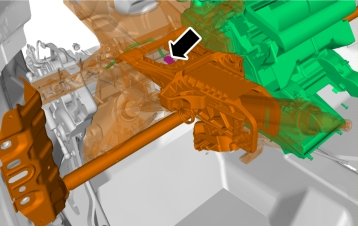

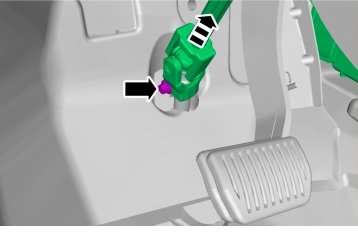

Torque: M8, 24 Nm





Remove the engine control module (ECM) Refer to: Engine control module (ECM), B6304T4, B6324S5, B6324S4 Service and Repair




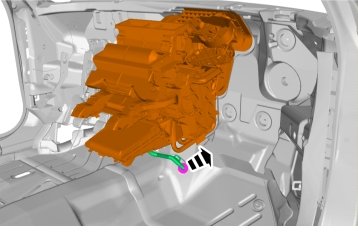

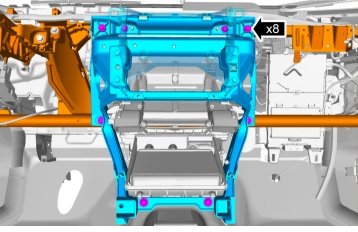

Torque: M6, 10 Nm

Remove the wiper mechanism, windscreen Refer to: Wiper mechanism, windshield, L.H.D Service and Repair




Torque: M6, 10 Nm




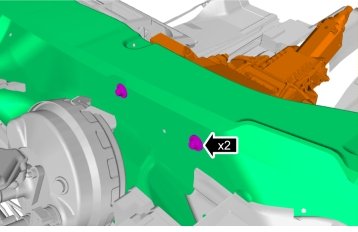

Torque: M10, 50 Nm









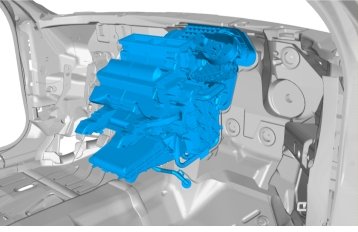

Installation

To install, reverse the removal procedure.

Perform refrigerant, filling Refer to: Refrigerant, filling Refrigerant, Filling
