Compressor Clutch: Service and Repair

Electromagnetic clutch

Operation number: 87426-2











Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair

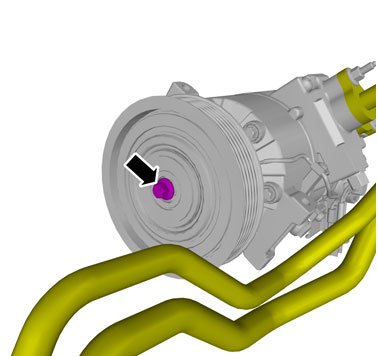

Use: Box wrench 19 mm.

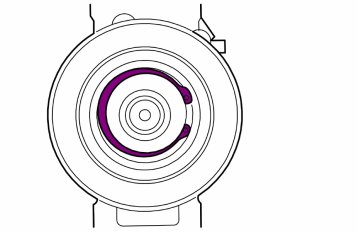

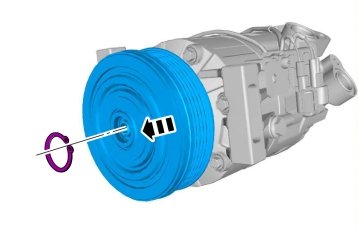

Use: Pin 3 mm.

















Remove ac-compressor Refer to: AC compressor, B6304T4 Service and Repair








Torque: M6, 10 Nm









Installation

To install, reverse the removal procedure.

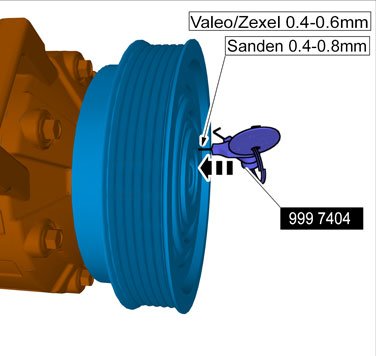

999 7404 Adjustment tool 999 7404 Adjustment Tool
