Blower Motor: Service and Repair

Blower motor passenger compartment

Operation number: 87306-2






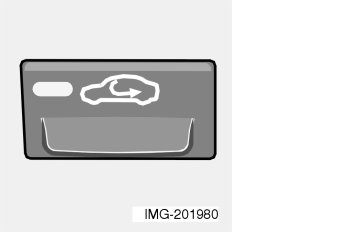

Removal

Note! Removal steps in this procedure may contain installation details.

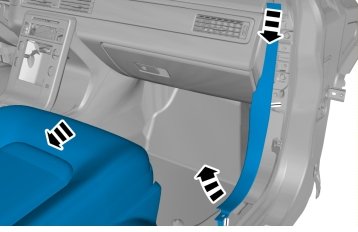

Remove the combined instrument panel Refer to: Combined instrument panel Combined Instrument Panel

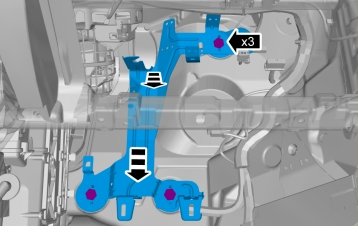

Remove control module relay box passenger compartment Refer to: Control module relay box passenger compartment Control Module Relay Box Passenger Compartment Control module relay box passenger compartment Control Module Relay Box Passenger Compartment








Torque: M8, 24 Nm

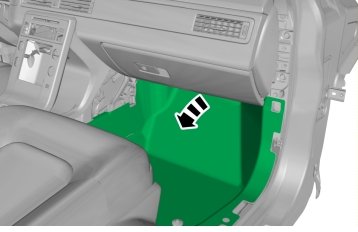

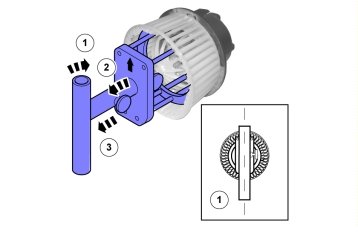

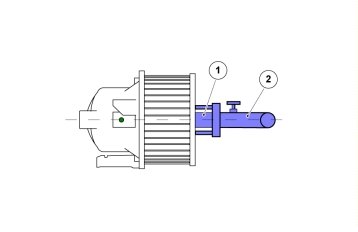

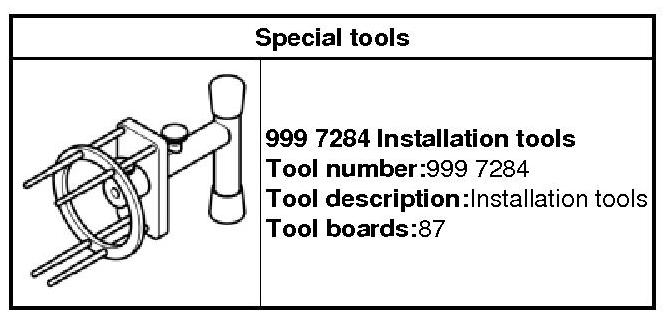

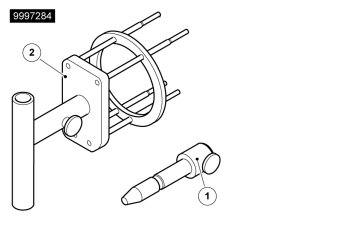

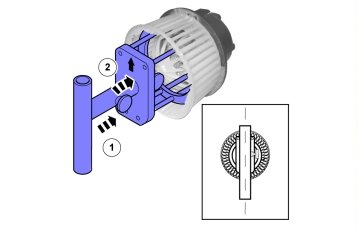

999 7284 Wrench 999 7284 Wrench

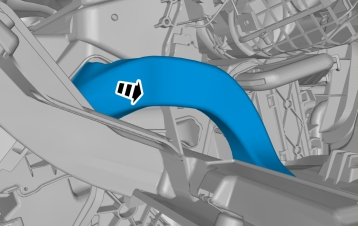

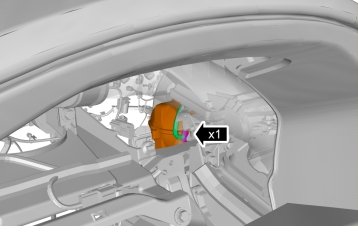

Caution! Take extra care when handling the component.

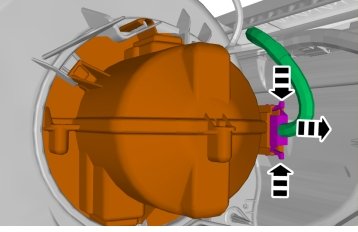

Caution! Take extra care when handling the component.

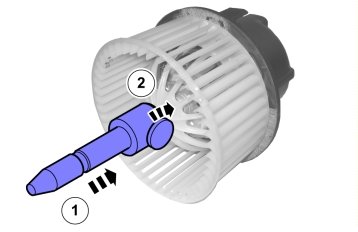

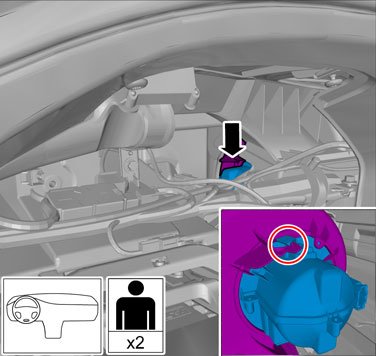

Note! This step requires the aid of another technician.

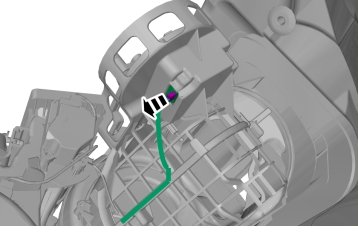

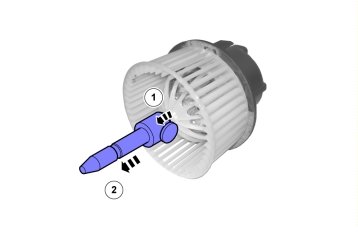

Caution! Take extra care when handling the component.

Installation

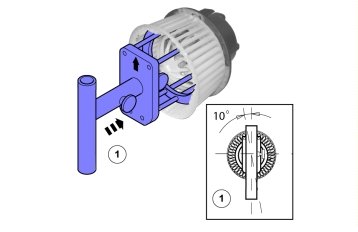

Caution! Take extra care when handling the component.

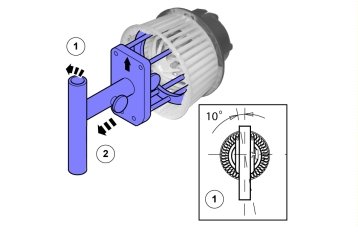

Caution! Take extra care when handling the component.





To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
