Actuator, Damper, Climate Control System, Passenger

Actuator, damper, climate control system, passenger

Operation number: 87307-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

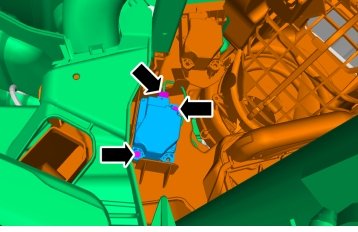

Removal

Note! Removal steps in this procedure may contain installation details.

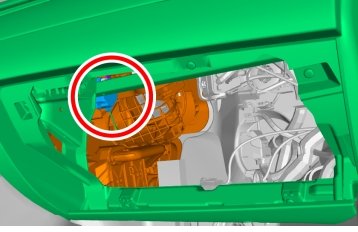

Remove the glove compartment. Refer to: Glove compartment Glove Compartment.











Installation

To install, reverse the removal procedure


Note! Identify the damper motor module (DMM) temperature. See VIDA Vehicle communication.

Carry out a performance test on the climate control system. Refer to: Climate control system, check Climate Control System, Check.
