Oil Pan: Service and Repair

Oil pan

Operation number: 21702-2











Removal

Drain oil

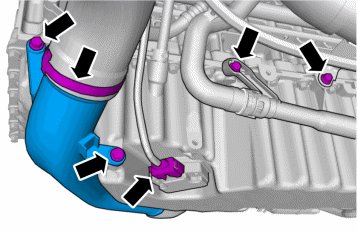

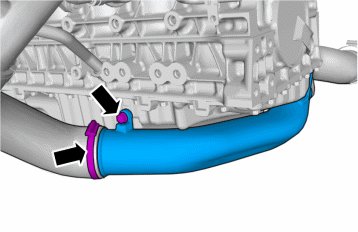

Remove the starter motor Refer to: Starter motor, B6304T4, B6324S5, B6324S4 Service and Repair





















Caution! Make sure that the mating faces are clean and free of foreign material.

Caution! Take extra care not to damage the mating faces.

Installation

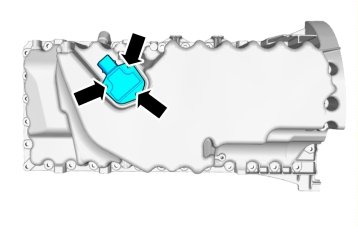

Torque: Level sensor engine oil , 8,5 Nm

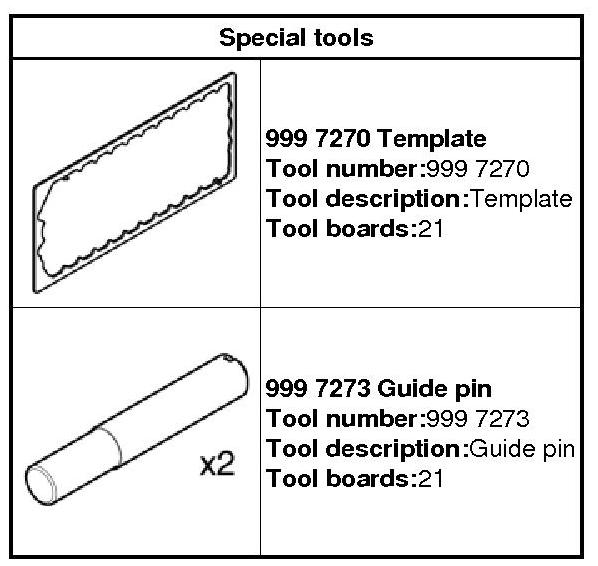

999 7270 Template 999 7270 Template

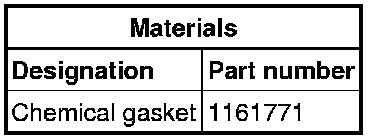

Use: Chemical gasket, 1161771




999 7273 Guide pin 999 7273 Guide Pin

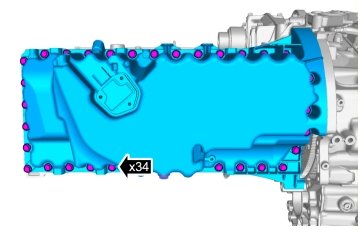

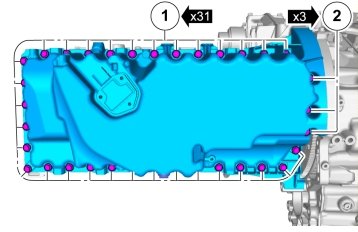

Install the following items:
1. Torque: M7, 17 Nm

2. Torque: M7, 17 Nm

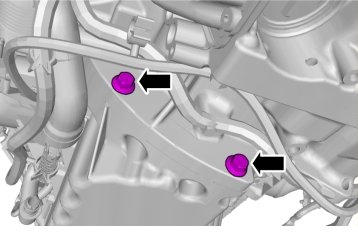

Torque: M10, 50 Nm




Torque: M6, 10 Nm




Torque: M6, 10 Nm








Torque: M6, 10 Nm

Drain oil
