Upper Torque Rod






Upper torque rod

Operation number: 21807-2

Removal

Note! Removal steps in this procedure may contain installation details.

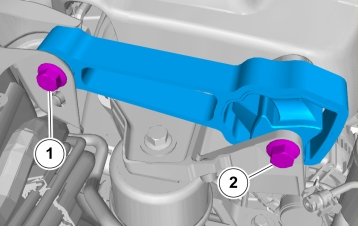

1. Torque: Upper torque rod to spring strut turret, 110 Nm

2. Torque: Upper torque rod to engine mount bracket, 110 Nm

Installation

To install, reverse the removal procedure.
